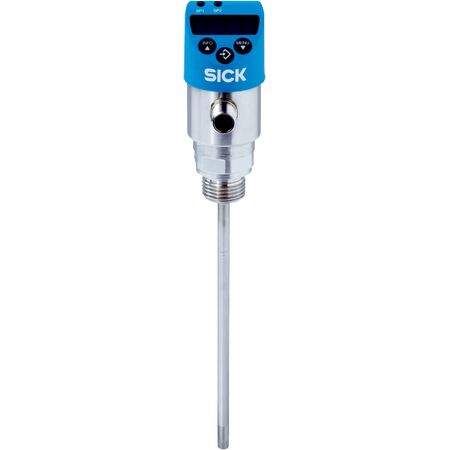

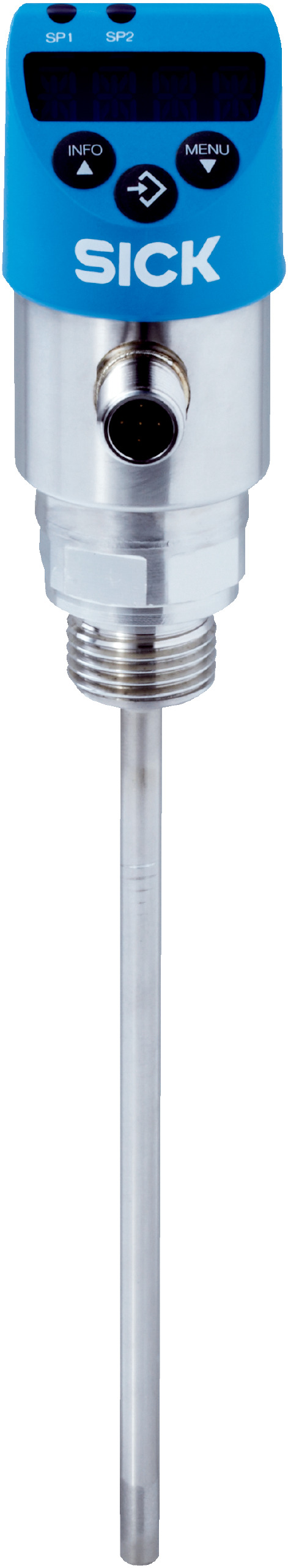

Temperature Sensor with LED Display | -20°C to +120°C | Pt1000 Probe | IP65/IP67 Rated | by SICK
The Temperature Sensor with LED Display is designed for precise industrial temperature monitoring, featuring a measuring range of -20°C to +120°C and a robust Pt1000 sensor element. With a programmable switching delay and a clear 14-segment blue LED display, this sensor is perfect for process automation and environments requiring high accuracy and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: –20 °C to +120 °C
- Sensor element: Pt1000, 2-wire
- Output signal: 1 x PNP + 0 V to 10 V
- Maximum ohmic load RA: ≤ 100 kΩ
- Switching output: Transistor, 1 output
- Switching voltage: Supply voltage - 1 V DC
- Maximum switching current: ≤ 250 mA
- Switching delay: 0 s to 50 s, programmable
- Display: 14-segment blue LED, 4 digits, height 9 mm, rotatable 180°
- Process connection: Compression fitting G ½ A
- Seal: Copper
- Insertion length/diameter: 100 mm / 6 mm
- Wetted parts: Stainless steel 1.4571 (AISI 316Ti)
- Maximum process pressure: ≤ 150 bar
- Housing material: Stainless steel 1.4301 (AISI 304), PC + ABS plastic head
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP65 / IP67
- Supply voltage: 15 V DC to 35 V DC
- Maximum current consumption: ≤ 45 mA
- Electrical safety: Protection class III, dielectric strength 500 V
- Certifications: CE, UKCA, China-RoHS, cULus
- Dimensions (H x L x W): 120mm x 150mm x 30mm
- Weight: 0.3 kg
Key Features
- Measuring range from –20 °C to +120 °C
- Pt1000 2-wire sensor element
- Output signal: 1 x PNP and 0 V to 10 V
- Programmable switching delay from 0 s to 50 s
- 14-segment blue LED display with 4 digits, rotatable by 180°
- High accuracy sensor element class A according to IEC 60751
- Robust stainless steel housing with IP65/IP67 protection
- Maximum process pressure up to 150 bar
- Short-circuit, overvoltage, and reverse polarity protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature monitoring and control
- Process automation requiring precise temperature measurement
- Environments needing robust and accurate temperature sensors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption enhances energy efficiency in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK TBS-1CES21006CM temperature sensor is available for immediate purchase, ideal for industrial and process temperature monitoring applications.
