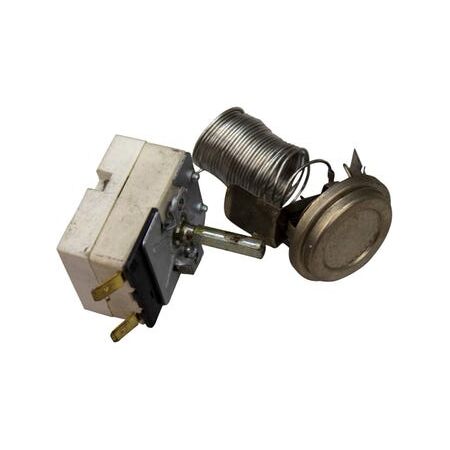

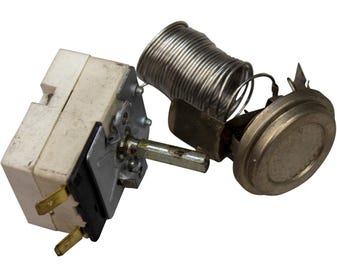

Temperature Sensor SPST | 50-250°C Range | 16A Rating | 1170mm Length by Cabac
Monitor temperatures accurately with this SPST temperature sensor, featuring a range of 50-250°C and a length of 1170mm. Ideal for industrial applications, it ensures reliable performance and precise readings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Temperature Sensor SPST | 50-250°C Range | 1170mm Length by TSTAT
Brand: Cabac
SKU: EG55.13055.060
Alternatively Known As: Pan Sensor Thermostat, Cooking Thermostat, Temperature Control Thermostat, SPST Thermostat
Technical Specifications
- Temperature range: 50-250°C
- Switch type: SPST (Single Pole Single Throw)
- Capillary length: 1170mm
- Sensor size: 36 x 15mm
- Start angle: 60 degrees
- Rotation: 270 degrees
- Electrical rating: 16A at 240V
- Operation: Break on temperature rise
- Dimensions (H x L x W): 15mm x 1170mm x 36mm
- Weight: 0.2 kg
Key Features
- Temperature range from 50 to 250 degrees Celsius
- Single pole single throw (SPST) switch
- Breaks circuit on temperature rise
- 16A 240V rating for reliable operation
- Capillary length of 1170mm
- Sensor dimensions 36 x 15mm
- Start angle 60 degrees with 270 degrees rotation
Professional Installation Requirements
- Installation by a qualified appliance technician or electrician is recommended to ensure safety and proper operation.
Applications
- Cooking appliances requiring temperature control
- Commercial and residential ovens and cooktops
- Appliance repair and maintenance
Standards & Compliance
- Complies with AS/NZS 60335 for safety of household and similar electrical appliances
Environmental Benefits
- Helps maintain efficient appliance operation reducing energy waste
- Durable design reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms.
Available Now
The Cabac TSTAT PAN SEN 50-250 DEG C SPST 1170MM is available for immediate purchase, ideal for cooking appliance repairs and replacements.
