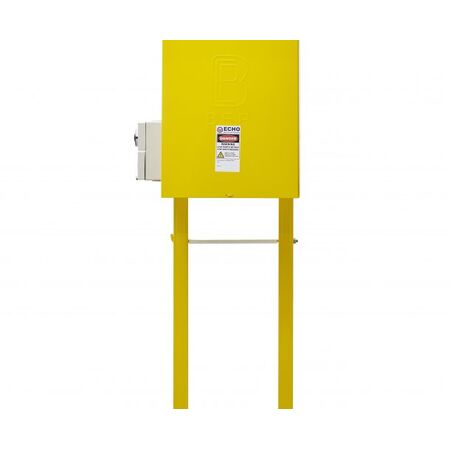

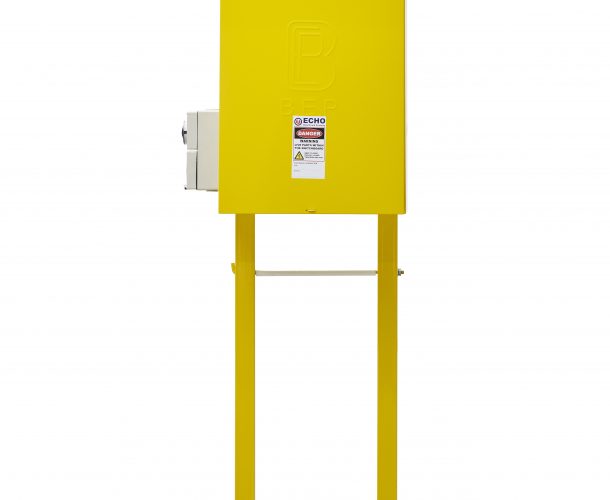

Temporary Meter Box for 300 & 450 Meters | 1.2mm Galvanised Steel | IP23 Rated | 100A Options by Echo Boards

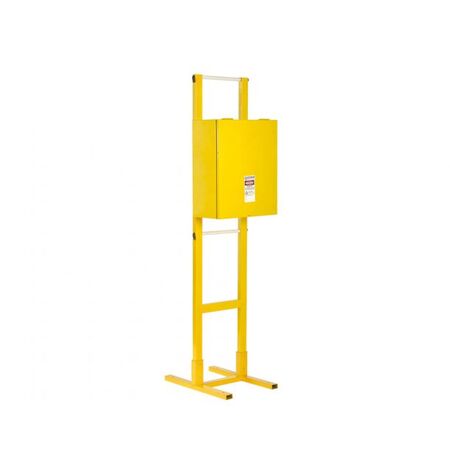

Temporary meter box designed for 300 and 450 meter applications, featuring durable 1.2mm galvanised steel construction and an IP23 rating. Ideal for construction sites and builder supply needs, it offers 100A wired and non-wired options with multiple outlets for versatile power distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Temporary Meter BoxesSUITABLE FOR 300 AND 450 METER BOX
Brand: Echo Boards
SKU: TWO PIECE STAND
Alternatively Known As: Temporary Electrical Meter Box, Builders Supply Meter Box, Temporary Power Distribution Box, Temporary Meter Enclosure
Technical Specifications
- Material: 1.2mm Galvanised steel
- IP Rating: IP23
- Current Rating: 100A wired and non-wired options
- Outlets: Multiple DGPOs 10A, GPO 15A
- Circuit Breaker: 40A, 50A, or 63A main switch
- MCB/RCD: 2 to 3 units depending on configuration

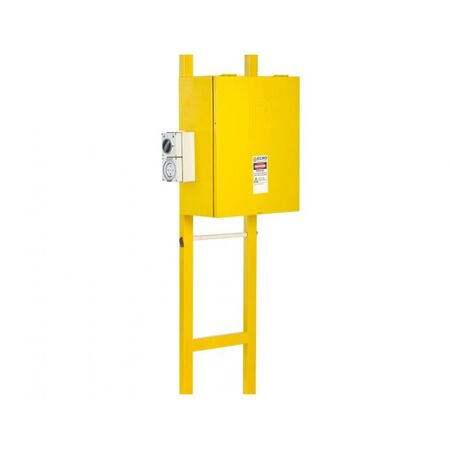

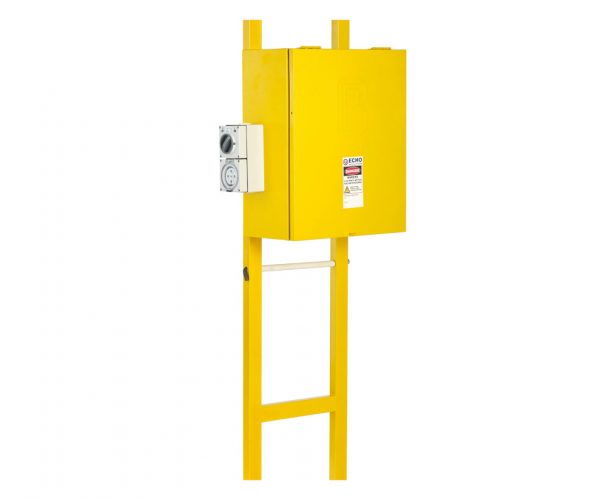

- Optional external 20A or 32A three-phase 5 pin outlet

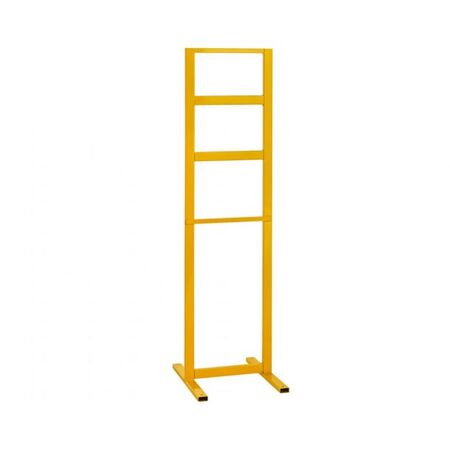

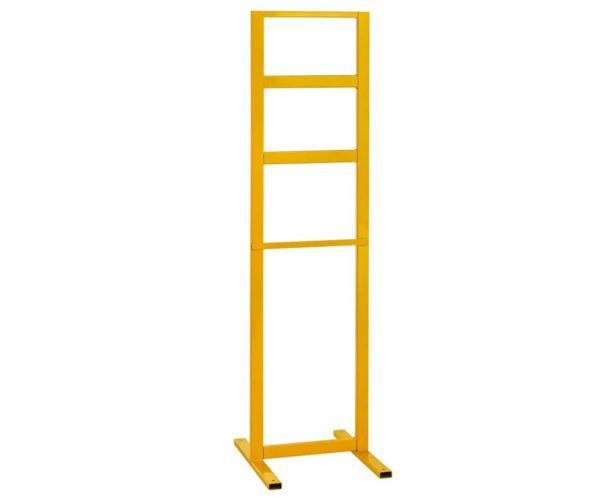

- Stand: Strong modular design, replaceable base
- Dimensions (H x L x W): 1840mm x 680mm x 405mm
- Weight: 25 kg
Key Features
- 1.2mm Galvanised steel construction with IP23 rating
- Available in 100A wired and non-wired options

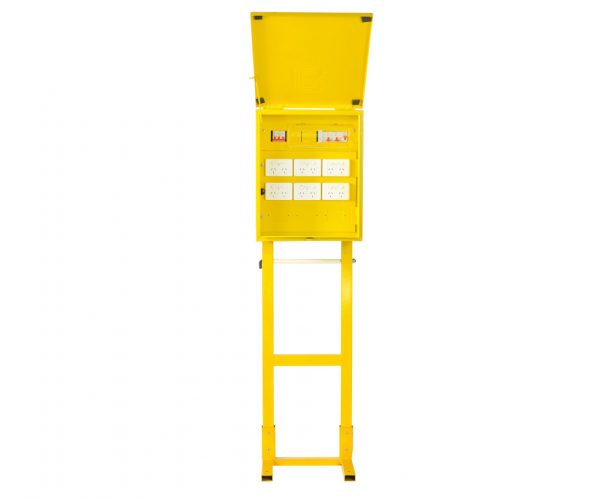

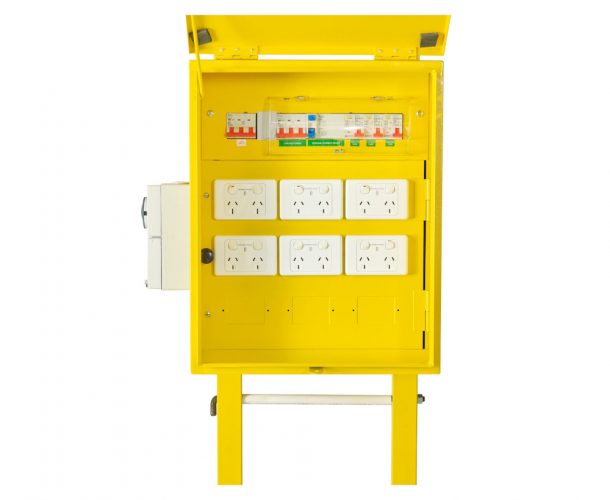

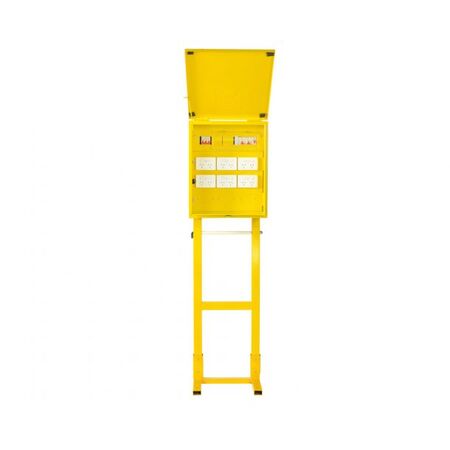

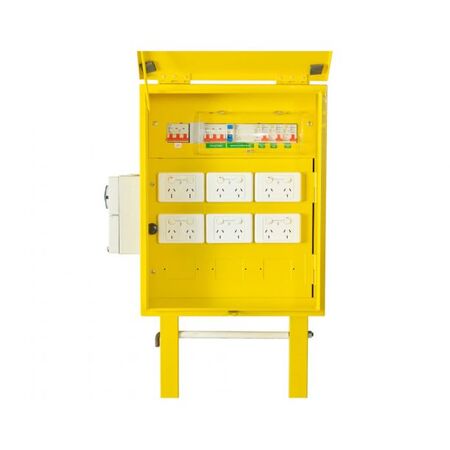

- Supplied & wired with multiple DGPOs and GPOs
- Includes 40A, 50A, or 63A circuit breaker main switch and multiple MCB/RCDs
- Optional external 20A or 32A three-phase 5 pin outlet

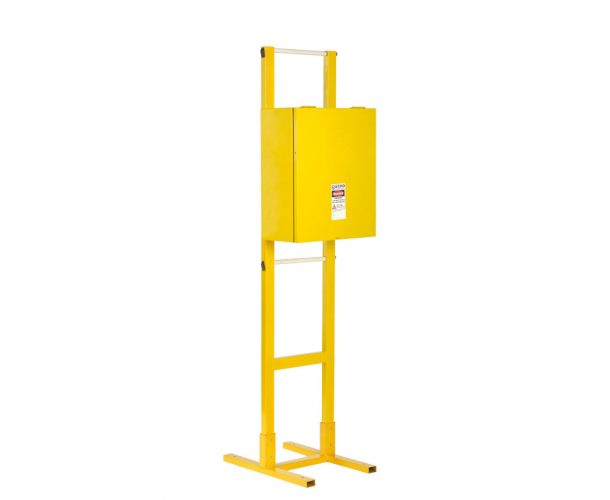

- Strong modular stand for easy handling and freight protection
- Replaceable stand base sold separately
- Wired assembly tested to AS61439.1 and AS61439.2
Professional Installation Requirements
- Professional installation by a licensed electrician is required to ensure compliance with electrical safety standards and proper wiring.
Applications
- Temporary electrical supply for construction sites
- Builders supply enclosure for residential and commercial projects
- Outdoor temporary power distribution
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Wired assembly tested to AS61439.1 and AS61439.2
Environmental Benefits
- Durable galvanised steel construction extends product life and reduces waste
- Modular design allows for component replacement, minimizing full unit disposal
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Echo Boards Temporary Meter Boxes suitable for 300 and 450 meter boxes are available now for immediate purchase. Ideal for temporary power supply on construction sites and builder’s supply needs.
