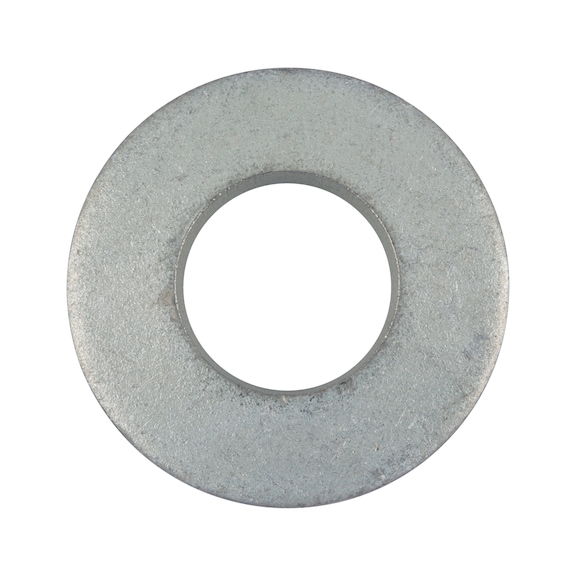

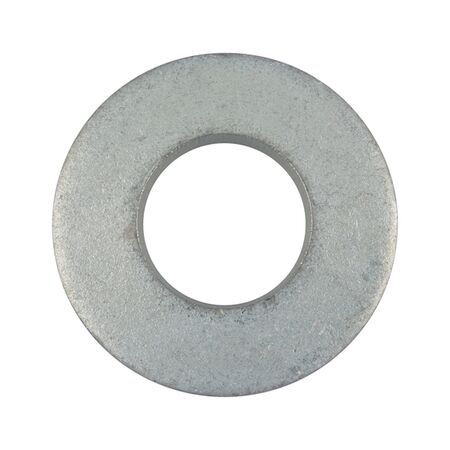

Tensioning Washer DIN 6796 | Spring Steel C60 | Zinc Coated | @Pack of 100 | by Wurth
Tensioning Washer DIN 6796 made from spring steel C60 and zinc coated for enhanced corrosion resistance. Perfect for screw connections requiring high pre-tensioning force, this washer is ideal for industrial and construction applications. Compliant with DIN 6796 standards, it ensures reliable fastening and maintains pre-tensioning through high resiliency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tensioning Washer DIN 6796 | Spring Steel C60 | Zinc Coated | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 413110
Alternatively Known As: Spring Washer, Lock Washer, Tension Washer, DIN 6796 Washer, Zinc Plated Spring Washer
Technical Specifications
- Suitable for screw thread: M10
- Internal diameter (d1): 10.5 mm
- Outer diameter (d2): 23 mm
- Height (h1): 3.2 mm
- Thickness (s1): 2.5 mm
- Material: Spring steel C60
- Surface: Mechanically applied zinc coating
- Standards: DIN 6796
- Suitable for screw connections property class 8.8 and 10.9
- Locking function: Embedding locking device
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.2mm x 23mm x 23mm
- Weight: 0.05 kg
Key Features
- Spring washers act as co-stressed elements to counteract loosening of screwed connections
- Maintains pre-tensioning force through high resiliency
- Mechanically applied zinc coating for corrosion resistance
- Compliant with DIN 6796 standard
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper application and torque settings.
Applications
- Used in screw connections requiring high pre-tensioning force
- Suitable for property class 8.8 and 10.9 screw connections
- Ideal for mechanical fastening in industrial and construction settings
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Zinc coating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies.
