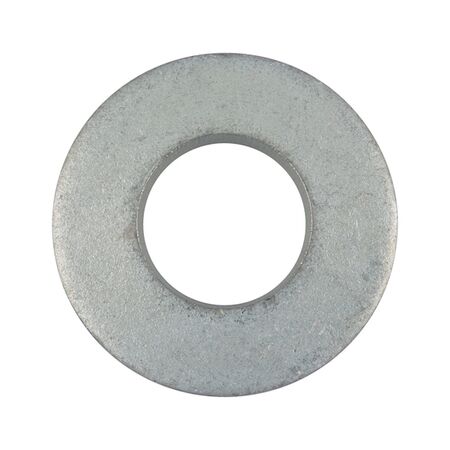

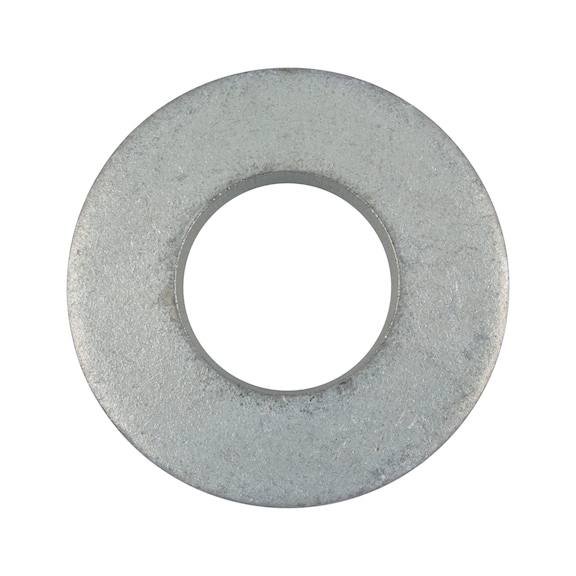

Tensioning Washer DIN 6796 | Spring Steel C60 | Zinc Coated | @Pack of 100 | by Wurth
Tensioning Washer DIN 6796 made from spring steel C60 and zinc coated for enhanced corrosion resistance. Perfect for screw connections requiring high pre-tensioning force retention, this washer is ideal for mechanical fastening in construction and manufacturing. Compliant with DIN 6796 standards, it ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tensioning Washer DIN 6796 | Spring Steel C60 | Zinc Coated | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 413112
Alternatively Known As: Spring Washer, Locking Washer, Tension Washer, DIN 6796 Washer
Technical Specifications
- Suitable for screw thread: M12
- Internal diameter (d1): 13 mm
- Outer diameter (d2): 29 mm
- Height (h1): 3.95 mm
- Thickness (s1): 3 mm
- Material: Spring steel C60
- Surface: Mechanically applied zinc coating
- Standards: DIN 6796
- Suitable for screw connections property class 8.8 and 10.9
- Locking function: Embedding locking device
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.95mm x 29mm x 29mm
- Weight: 0.05 kg
Key Features
- Spring washers act as co-stressed elements to counteract loosening of screwed connections
- Maintains pre-tensioning force through high resiliency
- Mechanically applied zinc coating for corrosion resistance
- Compliant with DIN 6796 standard
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper application and safety.
Applications
- Used in screw connections requiring high pre-tensioning force retention
- Suitable for property class 8.8 and 10.9 screw connections
- Ideal for mechanical fastening applications in construction and manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable zinc coating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Tensioning Washer DIN 6796 is available for immediate purchase, ideal for industrial and mechanical fastening applications.
