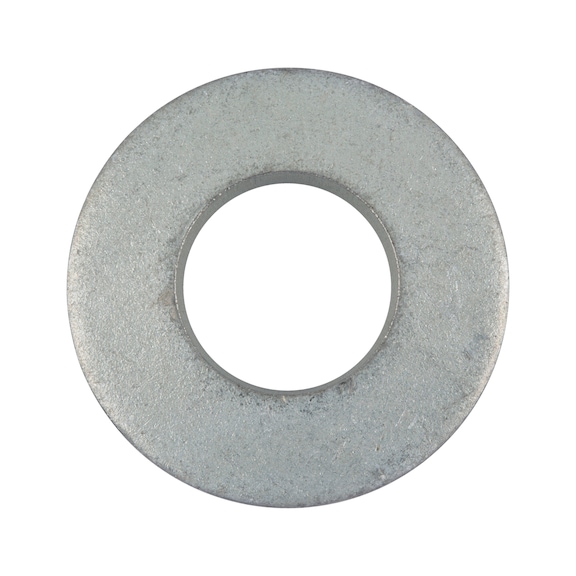

Tensioning Washer DIN 6796 | Spring Steel C60 | Zinc Coated for Corrosion Resistance | @Pack of 500 | by Wurth
Tensioning Washer DIN 6796 made from spring steel C60 is designed to maintain pre-tensioning force and prevent loosening in screw connections. With a mechanically applied zinc coating for corrosion resistance, it's perfect for M6 screw threads and ideal for mechanical fastening applications requiring high resiliency and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tensioning Washer DIN 6796 | Spring Steel C60 | Zinc Coated for Corrosion Resistance | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 41316
Alternatively Known As: Spring Washer, Lock Washer, Tension Washer, DIN 6796 Washer, Zinc Plated Washer
Technical Specifications
- Suitable for screw thread: M6
- Internal diameter (d1): 6.4 mm
- Outer diameter (d2): 14 mm
- Height (h1): 2 mm
- Thickness (s1): 1.5 mm
- Material: Spring steel C60
- Surface: Mechanically applied zinc coating
- Standards: DIN 6796
- Suitable for screw connections property class 8.8 and 10.9
- Locking function: Embedding locking device
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2mm x 14mm x 14mm
- Weight: 0.1 kg
Key Features
- Spring washers act as co-stressed elements to counteract loosening of screwed connections
- Maintains pre-tensioning force through high resiliency
- Mechanically applied zinc coating for corrosion resistance
- Suitable for M6 screw thread
- Embedding locking device provides locking function
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure correct application and safety.
Applications
- Used in screw connections requiring high pre-tensioning force
- Suitable for property class 8.8 and 10.9 screw connections
- Ideal for mechanical fastening applications requiring loosening prevention
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Tensioning Washer DIN 6796 is available for immediate purchase, ideal for industrial and mechanical fastening applications.
