Terasaki ACB 2500A | 85kA Breaking Capacity | 3P with Shunt Trip | Modbus RTU by NHP
Terasaki ACB with 2500A rated current and 85kA short circuit breaking capacity—ideal for industrial and commercial power distribution. Built for reliability, with Modbus RTU communication and integrated earth fault protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

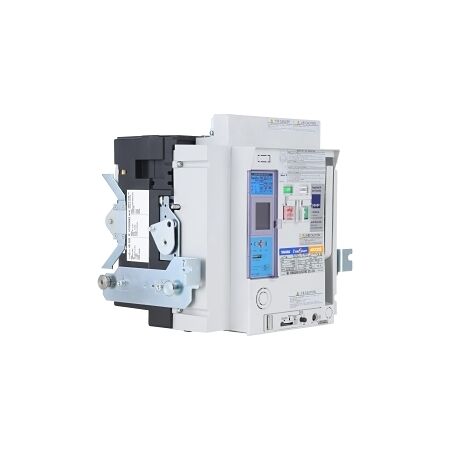

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR3 85kA 2500A 3P with AGR21CL and Shunt Trip 240V AC
Brand: NHP
SKU: ARB3253STD
Alternatively Known As: Terasaki ACB, TemPower 2 Circuit Breaker, AR ACB Body
Technical Specifications
- Rated ultimate short circuit breaking capacity: 85 kA at 415 V
- Rated insulation voltage: 1000 V
- Rated frequency: 50-60 Hz
- Short time withstand current: 85 kA for 1 sec
- Mechanical life: 10,000 cycles
- Electrical life: 7,000 cycles
- Pollution degree: 3
- Maximum operating temperature: 60 °C
- Dimensions (H x L x W): 490mm x 385mm x 460mm
- Weight: 80 kg
Key Features
- Rated current: 2500 A
- 85 kA short circuit breaking capacity
- Electronic release trip unit
- Integrated earth fault protection
- Modbus RTU communication protocol
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Large facilities requiring robust circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in power distribution.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemPower 2 AR ACB Body AR3 85kA 2500A 3P is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
