Terminal Block 1 Pole 25 Amp 300 VAC | DIN Rail Mountable | White Color | by Allen-Bradley
Terminal Block 1 Pole 25 Amp 300 VAC | DIN Rail Mountable | White Color | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

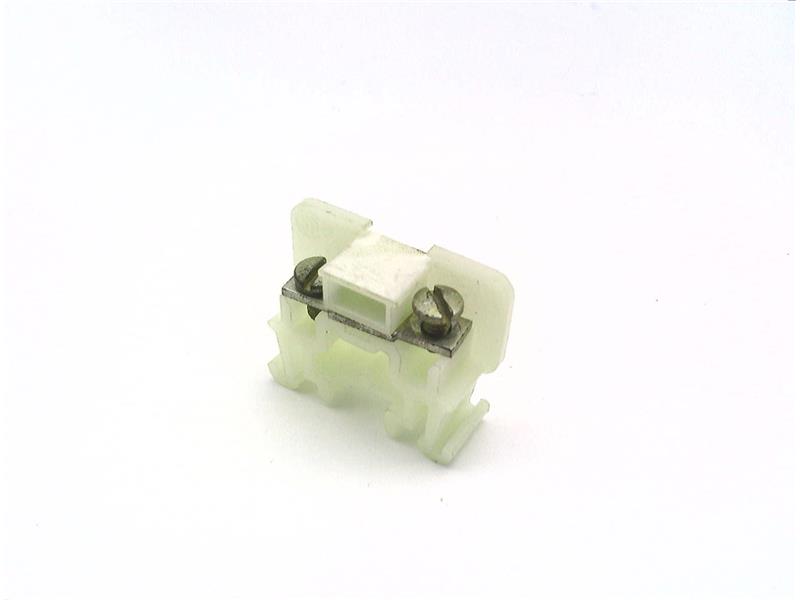

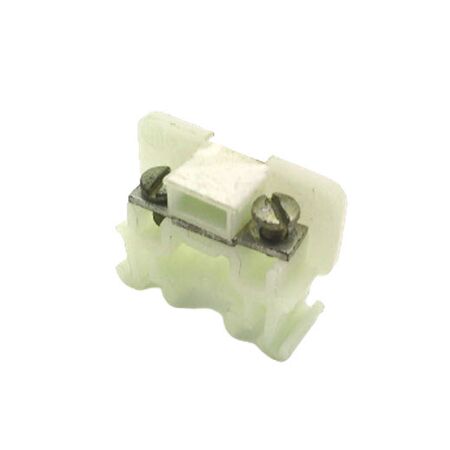

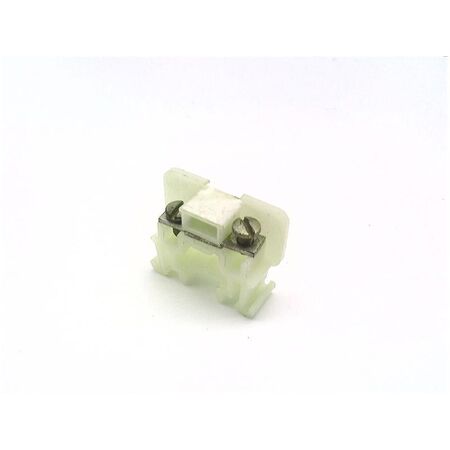

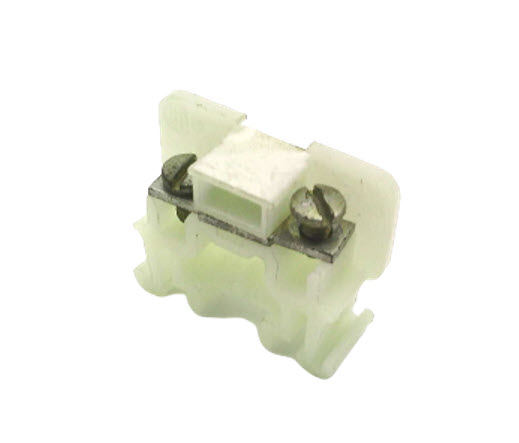

Product Name/Title: Allen-Bradley 1492F3 Terminal Block 1 Pole 25 Amp 300 VAC
Brand: Allen-Bradley
SKU: 1492F3
Alternatively Known As: Terminal Block 1 Pole 25A, DIN Rail Terminal Block, Electrical Terminal Connector
Technical Specifications
- Current Rating: 25 Amp
- Voltage Rating: 300 VAC
- Pole Count: 1
- Wire Size Compatibility: 22-14 AWG
- Connection Type: Screw without pressure plate
- Mounting Type: DIN rail
- Color: White
- Standards: NEMA/EEMAC compliant
- Dimensions (H x L x W): 50mm x 40mm x 10mm
- Weight: 0.05 kg
Key Features
- 1 pole terminal block
- Rated for 25 Amp current
- Supports up to 300 VAC voltage
- Compatible with 22-14 AWG wire sizes
- Screw connection without pressure plate
- White color for easy identification
- DIN rail mountable
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Electrical control panels
- Industrial automation systems
- DIN rail mounting electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1492F3 Terminal Block is available for immediate purchase, ideal for industrial and electrical control panel applications.
