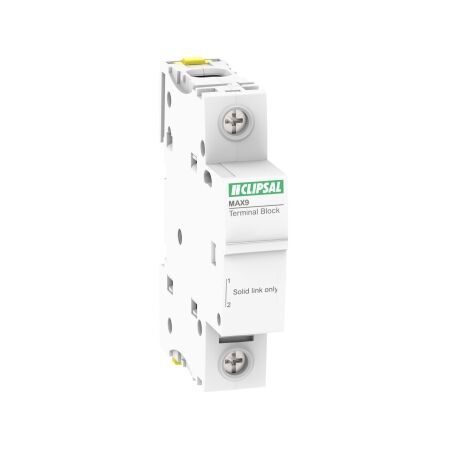

Terminal Block 100A | Screw Terminals | 25mm² Flex Capacity | Clipsal

BRAND: Clipsal
SKU: MX9TB1100
$8.50 List price: $12.80
+
Terminal block with 100A rated current and screw terminals—ideal for electrical distribution systems. Built for industrial and commercial use, with flexible copper cable capacity up to 25mm².

Product Name/Title: MAX9, Terminal Block

Brand: Clipsal

SKU: MX9TB1100

Alternatively Known As: MAX9 Terminal Connector, Clipsal Terminal Block

Technical Specifications
  • Rated current: 100A
  • Connector type: Screw terminals
  • Number of poles: 1
  • Flexible cable cross section: 25mm²
  • Rigid cable cross section: 35mm²
  • Environmental disclosure: ENVPEP2110001
  • Dimensions (H x L x W): 20mm x 70mm x 90mm
  • Weight: 0.078 kg
Key Features
  • Rated current of 100A
  • Flexible copper cable capacity up to 25mm²
  • Rigid copper cable capacity up to 35mm²
  • Screw terminal connector
  • Solid link circuit
  • 18mm module device
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Electrical distribution systems
  • Industrial applications
  • Commercial installations
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Compliant with EU RoHS directive and toxic heavy metal free.
  • Packaging made with recycled cardboard and without single-use plastic.
Warranty Information

7 years warranty against manufacturing defects.

Available Now

The Clipsal MAX9 Terminal Block is available now for immediate purchase. Ideal for electrical distribution systems in industrial and commercial settings.

MX9TB1100 (MX9TB1100, 207 Kb) [Download]
