Making Trade Life Easy!

Home/Electrical Supplies/Clipsal Industrial/Schneider Automation & Control/Terminal Blocks/Terminal Block 2 Points | 10mm² Spring Type | Grey by Clipsal

Trade Discount 20%

Linergy, Terminal block, Linergy TR, spring type, feed through, 2 points, 10mm², grey

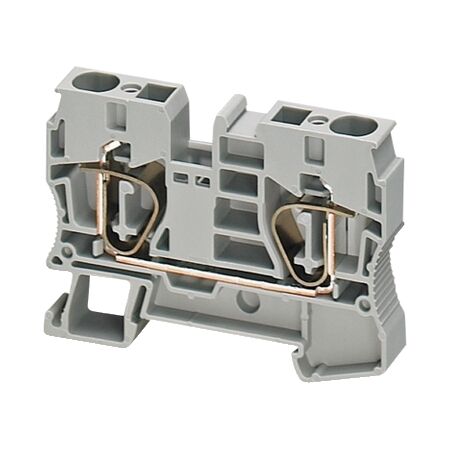

Terminal Block 2 Points | 10mm² Spring Type | Grey by Clipsal

BRAND: Clipsal

SKU: NSYTRR102

$4.90 List price: $6.10

+ −

30 Days Return Delivery Options

Terminal block with 10mm² spring type connections and 2 points—ideal for industrial electrical installations. Built for secure and easy connections, with wide compatibility and high voltage rating.

Description
Attachments

Product Name/Title: Linergy, Terminal block, Linergy TR, spring type, feed through, 2 points, 10mm², grey

Brand: Clipsal

SKU: NSYTRR102

Alternatively Known As: Linergy Terminal Block, Spring Terminal Block, Feed Through Terminal Block

Technical Specifications

Product type: Terminal block
Connections: 1 x spring terminal upstream, 1 x spring terminal downstream
Number of terminals: 2
Wire stripping length: 18 mm
Material: Polyamide 6/6 insulating case, copper alloy connectors
Dielectric strength: 1000 V conforming to IEC 60243-1
Flame retardance: V0, thickness 0.8 mm conforming to UL 94
Ambient air temperature for operation: -40...130 °C conforming to IEC 60216
Dimensions (H x L x W): 50.5mm x 71.5mm x 10.2mm
Weight: 0.1 kg

Key Features

Spring type terminal block for easy and secure connections.
Rated operational voltage of 600V CSA and 800V conforming to EN/IEC standards.
Rated current of 57A conforming to EN/IEC standards.
Wide compatibility with various PrismaSeT and TeSys enclosures.

Professional Installation Requirements

Professional installation is recommended for optimal safety and performance.

Applications

Industrial: Suitable for use in various electrical installations and enclosures.

Standards & Compliance

Complies with EN/IEC 60947-7-1 for safety and performance standards.

Environmental Benefits

Halogen free plastic parts contribute to safer disposal and reduced environmental impact.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Linergy TR Terminal Block is available now for immediate purchase. Ideal for industrial electrical installations.

NSYTRR102 (NSYTRR102, 284 Kb) [Download]
