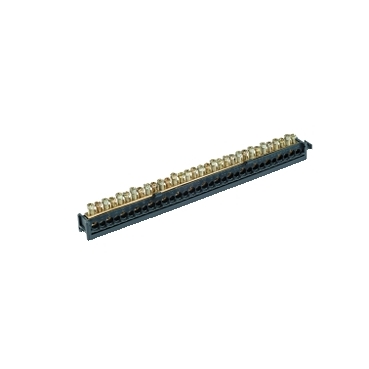

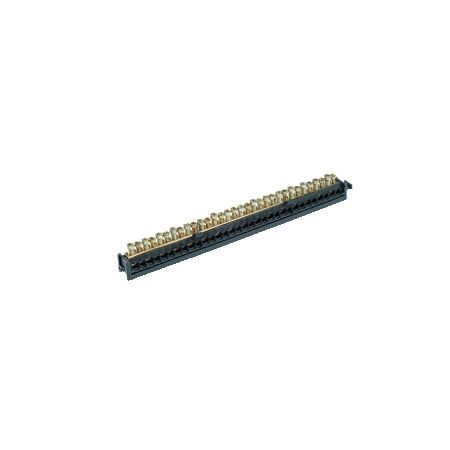

Terminal Block 80A 32 Holes | 32 Pole Design | Screw Clamp Terminals | Flame-Retardant Plastic | @Pack of 1 | by Clipsal
The Terminal Block 80A 32 Holes is designed for high-capacity wiring, featuring a robust 32 pole configuration and rated for 80A current. Ideal for electrical distribution boards and industrial control panels, this terminal block ensures secure connections with screw clamp terminals and clear markings for easy identification. Built from flame-retardant plastic, it meets Australian electrical standards for safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Terminal Block 80A 32 Holes | 32 Pole Design | Screw Clamp Terminals | Flame-Retardant Plastic | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCH13579
Alternatively Known As: 80A Terminal Strip, 32 Pole Terminal Block, Electrical Terminal Bar, Distribution Block 80A, Clipsal Terminal Block 32 Way
Technical Specifications
- Current Rating: 80A
- Number of Terminals: 32
- Conductor Material: Copper
- Body Material: Flame-retardant plastic
- Mounting: Surface or DIN rail (with adapter)
- Terminal Type: Screw clamp
- Voltage Rating: 415V AC
- Wire Size: Up to 16mm²
- Dimensions (H x L x W): 30mm x 300mm x 40mm
- Weight: 0.45 kg
Key Features
- 32 pole terminal block for high-capacity wiring
- Rated for 80A current
- Robust construction for secure and reliable connections
- Clear terminal markings for easy identification
- Suitable for copper conductors
- Screw clamp terminals for strong wire retention
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards and safety regulations.
Applications
- Electrical distribution boards
- Industrial control panels
- Switchboards
- Commercial and residential wiring installations
- Power distribution in machinery and equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Supports efficient electrical distribution, minimizing energy loss
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Terminal Block 80A 32 Holes SCH13579 is available for immediate purchase. Ideal for high-capacity electrical distribution in commercial, industrial, and residential installations.
