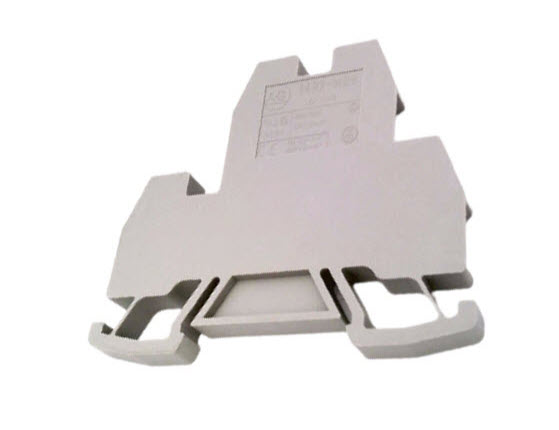

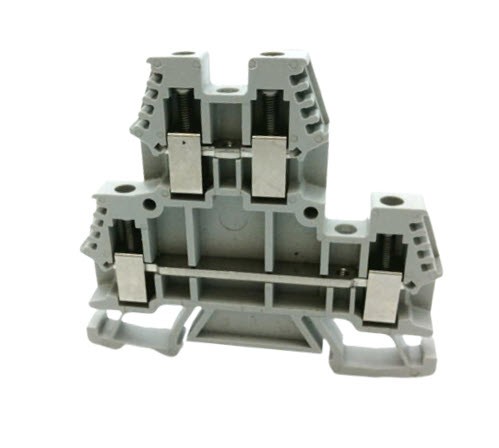

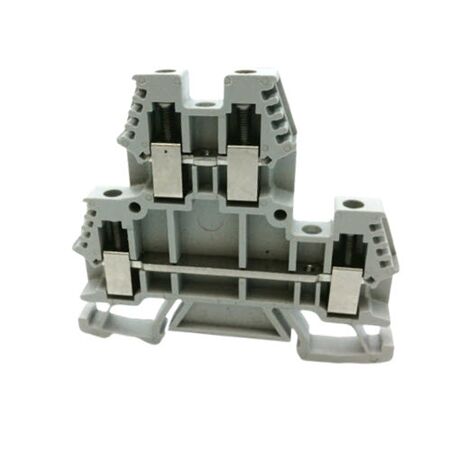

Terminal Block Screw Connection | Feed Through Two Circuit | 300V AC/DC | Gray | by Allen-Bradley

BRAND: Allen-Bradley
SKU: 1492WD6
$68.80 List price: $85.70
+ −
30 Days Return Delivery Options
Terminal Block Screw Connection | Feed Through Two Circuit | 300V AC/DC | Gray | by Allen-Bradley

Product Name/Title: Allen-Bradley 1492WD6 Terminal Block Screw Connection Feed Through Two Circuit

Brand: Allen-Bradley

SKU: 1492WD6

Alternatively Known As: Terminal Block Screw Connection, Feed Through Terminal Block, 1492WD6 Terminal Connector

Technical Specifications
  • Type: Terminal Block
  • Connection: Screw connection
  • Circuit: Feed through, two circuit
  • Poles: 1 pole
  • Voltage Rating UR: 300V AC/DC
  • Voltage Rating CSA: 300V AC/DC
  • Voltage Rating IEC: 500V AC/DC
  • Maximum Current Rating UR: 50A
  • Maximum Current Rating CSA: 55A
  • Colour: Gray
  • Dimensions (H x L x W): 63mm x 78mm x 7mm
  • Weight: 0.1 kg
Key Features
  • Screw connection terminal block for secure wiring
  • Feed through design supporting two circuits
  • Single pole configuration
  • Voltage rating up to 300V AC/DC (UR and CSA), 500V AC/DC (IEC)
  • Maximum current rating of 50A (UR), 55A (CSA)
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
  • Electrical wiring and circuit connections in industrial control panels
  • Electrical distribution systems requiring secure and reliable terminal connections
  • Automation and control systems in manufacturing environments
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Supports efficient electrical connections reducing energy loss
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 1492WD6 Terminal Block is available now for immediate purchase. Ideal for industrial and commercial electrical wiring applications.
