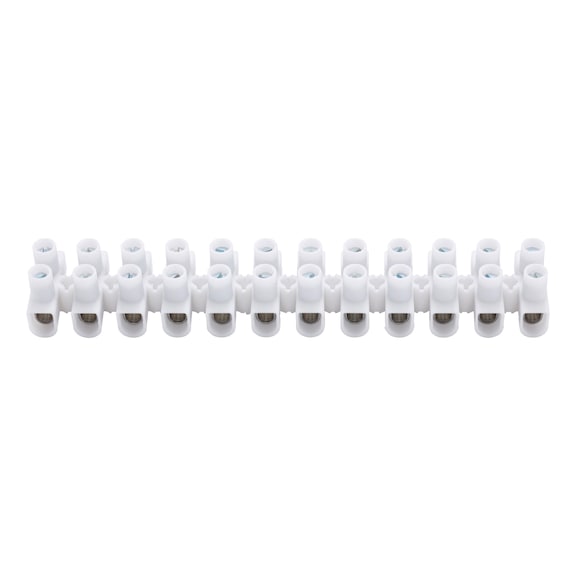

Terminal Block without Wire Guard | 12 Poles | 57A Nominal Current | Flame-Retardant | by Wurth
The Terminal Block without Wire Guard is designed for reliable electrical connections, featuring 12 poles and a nominal current of 57A. Ideal for both flexible and rigid conductors, this flame-retardant block ensures safety and durability in industrial and commercial applications. With an improved terminal shape for easy conductor entry, it simplifies installation and enhances performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Terminal Block without Wire Guard | 12 Poles | 57A Nominal Current | Flame-Retardant | by Wurth
Brand: Wurth
SKU: 5563
Alternatively Known As: Terminal connector block, Electrical terminal strip, Wire terminal block, Terminal block connector
Technical Specifications
- Min./max. single-wire cross section: 2.5-10 mm²
- Nominal current single-wire: 57 A
- Wire cross section rigid min./max.: 2.5-6 mm²
- Nominal current rigid: 41 A
- Wire cross section flexible min./max.: 2.5-6 mm²
- Nominal current flexible: 41 A
- Nominal voltage: 450 V
- Min./max. ambient temperature: -5 to 80 °C
- T identification according to EN 60998: T80
- Flame-retardant rating: 850°C
- Number of electrical poles: 12 PCS
- Min./max. wire-stripping length: 7.5-8.5 mm
- Material of housing: PP - Polypropylene
- Material of contacts: Steel, tin plated
- Material of screw: Steel, zinc plated
- Thread type x nominal diameter: M3.5
- Drive type: Slot
- Slot width x slot length: 0.8 x 4.5 mm
- Tightening torque: 0.8 Nm
- Dimensions (H x L x W): 17.3mm x 133.8mm x 23.4mm
- Weight: 0.15 kg
Key Features
- Suitable for flexible conductors even without wire guard
- Easy to disconnect (twist and pull)
- Improved terminal shape for easy conductor entry
- High torque capacity
- Maximum flexibility
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical wiring and connection for flexible and rigid conductors
- Industrial and commercial electrical installations
- Control panels and distribution boards
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Flame-retardant material enhances safety and reduces fire risk
- Durable polypropylene housing extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Terminal Block without Wire Guard LUSTTRML VDE 25 100SMM is available for immediate purchase, ideal for electrical wiring and industrial applications.
