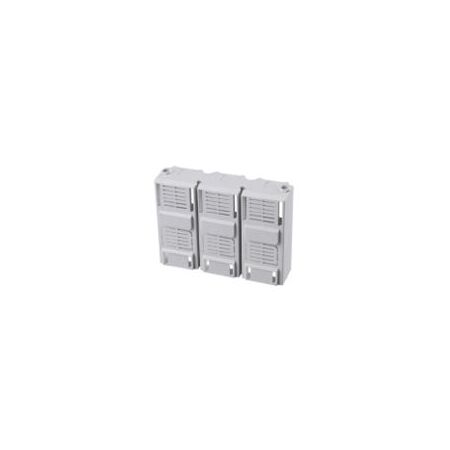

Terminal Cover 3P to Suit NM8N 125A MCCB Chint

BRAND: CABAC
SKU: 269686
$19.20 List price: $25.60
+ −
30 Days Return Electricians Unlock Trade Access
Chint standard terminal cover for 3P NM8N 125A frame MCCB. Ideal for insulating exposed line and load terminals in switchboards.

Alternatively Known As: CHINT NM8N-ST-T1-3P Short Terminal Cover, TCV21-M8 3P Terminal Shield, MCCB Terminal Shield

Technical Specifications
  • Compatibility: CHINT NM8N-125 frame MCCB
  • Number of Poles: 3P
  • Accessory Type: Short terminal cover
  • Function: Insulates exposed line and load terminals
  • Protection Degree: IP40
  • Pack Configuration: Supplied as a set of two covers
  • Material: Moulded insulating polymer
  • Dimensions (H x L x W): 78.5mm x 161.5mm x 90mm
  • Weight: 0.12 kg
Key Features
  • Designed specifically for CHINT NM8N 125A frame MCCBs
  • Suitable for three-pole MCCB applications
  • Helps prevent accidental contact with live terminal areas
  • Provides separation between line and load terminal connections
  • Suitable for installation in switchboards, control panels and distribution assemblies
Professional Installation Requirements
  • Installation should be carried out by a licensed electrician with the MCCB isolated and verified dead. Fit in accordance with the CHINT NM8N installation instructions and the requirements of AS/NZS 3000 and the relevant switchboard assembly standard.
Applications
  • Insulating line terminals on CHINT NM8N 125A 3P MCCBs
  • Insulating load terminals on CHINT NM8N 125A 3P MCCBs
  • Low-voltage switchboards
  • Control panels and distribution boards
Standards & Compliance
  • AS/NZS 61439 series when installed as part of a compliant low-voltage switchgear and controlgear assembly
  • AS/NZS 3000 requirements for protection against contact with live parts when installed in an electrical installation
Environmental Benefits
  • Durable insulating construction can support a longer service life and reduce accessory replacement waste
  • Helps protect MCCB terminals from accidental damage during normal switchboard operation
Warranty Information

CHINT low-voltage apparatus is generally covered for 27 months from the date of manufacture when purchased through authorised sales channels, subject to the applicable contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
