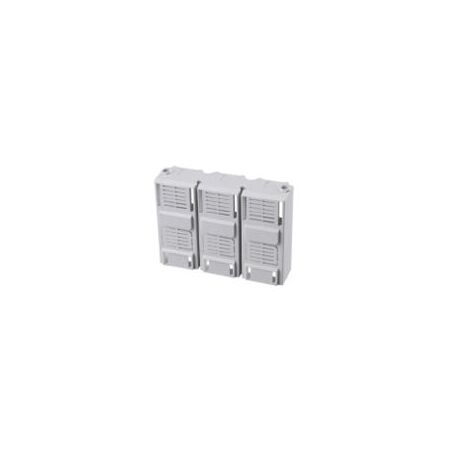

Terminal Cover 3P to Suit NM8N 250A MCCB Chint

BRAND: CABAC
SKU: 269688
$22.00 List price: $29.30
+ −
30 Days Return Electricians Unlock Trade Access
Chint standard terminal cover for 3P NM8N 250A frame MCCB. Ideal for insulating exposed line and load terminals in switchboards.

Alternatively Known As: MCCB Terminal Shroud, MCCB Terminal Shield, NM8N Terminal Cover, Insulating Terminal Cover

Technical Specifications
  • Compatibility: CHINT NM8N 250A frame MCCB
  • Pole Configuration: 3-pole
  • Accessory Type: Long terminal cover
  • Function: Insulates exposed line and load terminals and helps prevent contact with the main circuit
  • Protection Degree: IP40
  • Terminal Cover Dimension Reference: 361 x 76.5 x 88 mm
  • Material: Insulating moulded polymer
  • Installation Position: Line and load terminal areas
  • Dimensions (H x L x W): 76.5mm x 361mm x 88mm
  • Weight: 0.2 kg
Key Features
  • Designed specifically for CHINT NM8N 250A frame MCCBs
  • Suitable for three-phase, three-pole applications
  • Provides insulation around exposed line and load terminals
  • Helps reduce the risk of accidental contact and phase-to-phase short circuits
  • Long-cover design accommodates extended terminal and cable connection arrangements
  • Suitable for use in switchboards and power distribution assemblies
Professional Installation Requirements
  • Installation should be carried out by a licensed electrical worker with the MCCB isolated and verified de-energised. Fit and use the cover in accordance with CHINT installation instructions and the switchboard assembly design requirements of AS/NZS 61439.
Applications
  • Low-voltage switchboards
  • Commercial and industrial power distribution boards
  • Motor control centres
  • Three-phase electrical distribution assemblies using CHINT NM8N 250A frame MCCBs
  • Insulation of exposed MCCB line and load terminals
Standards & Compliance
  • AS/NZS 3000 Wiring Rules for electrical installation practices
  • AS/NZS 61439.1 for low-voltage switchgear and controlgear assembly requirements
  • AS/NZS 61439.2 for power switchgear and controlgear assemblies
Environmental Benefits
  • Durable insulating construction can extend service life and reduce replacement waste
  • Supports safer, maintainable switchboard assemblies and reduces the likelihood of component damage from accidental contact
  • Moulded polymer components may be recyclable through suitable specialist plastics-recycling streams where local facilities accept the material
Warranty Information

CHINT warranty policy generally provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels; contract terms and local distributor conditions may vary.

Available Now

Available through authorised CHINT distributors in Australia.
