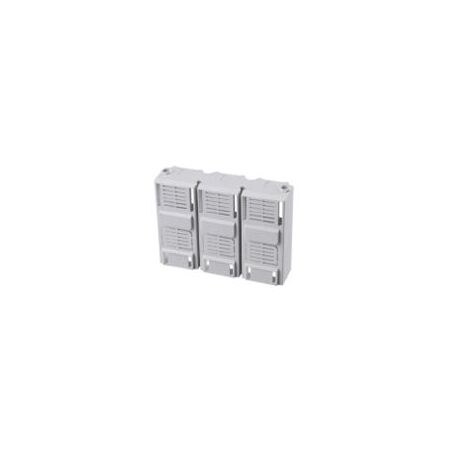

Terminal Cover 3P to Suit NM8N 400-630A MCCB Chint

BRAND: CABAC
SKU: 269690
$24.70 List price: $33.00
+ −
30 Days Return Electricians Unlock Trade Access
Chint standard terminal cover for 3P NM8N 400-630A frame MCCB. Ideal for insulating exposed line and load terminals in switchboards.

Alternatively Known As: CHINT NM8N 400/630 3P Terminal Protection Cover, MCCB Terminal Shroud, TCV23-M8 3P

Technical Specifications
  • Compatible MCCB Series: CHINT NM8N 400/630 frame
  • Pole Configuration: 3P
  • Accessory Type: Terminal protection cover
  • Application: Line and load terminal insulation
  • Protection Function: Helps prevent accidental contact with exposed terminals
  • Nominal MCCB Frame Range: 400–630A
  • Product Code: TCV23-M8 3P
  • Typical Protection Rating: IP20
  • Dimensions (H x L x W): 40mm x 150mm x 100mm
  • Weight: 0.23 kg
Key Features
  • Designed specifically for CHINT NM8N 400–630A frame MCCBs
  • Suitable for three-pole MCCB configurations
  • Insulates exposed line and load terminals
  • Helps reduce the risk of accidental contact inside switchboards
  • Suitable for front-connected MCCB installations
  • Compact accessory for switchboard safety and finishing
Professional Installation Requirements
  • Installation and any work inside a switchboard should be performed by a licensed electrician with the circuit isolated and verified de-energised. Fit only to the specified CHINT NM8N 400–630A 3P MCCB and ensure the cover does not obstruct terminal access, cable routing or required clearances.
Applications
  • Insulating line terminals on CHINT NM8N 400–630A MCCBs
  • Insulating load terminals on CHINT NM8N 400–630A MCCBs
  • Switchboard and motor control centre construction
  • Commercial and industrial low-voltage power distribution assemblies
Standards & Compliance
  • Applicable to MCCB installations governed by AS/NZS 3000 Wiring Rules
  • Use within switchboard assemblies designed and verified in accordance with AS/NZS 61439
  • Associated MCCB equipment is commonly specified to IEC 60947-2; verify the complete assembly and local compliance requirements before installation
Environmental Benefits
  • Durable insulating accessory that can remain in service with the MCCB, reducing replacement waste
  • Plastic insulating material may be recyclable through appropriate electrical equipment or plastics recycling streams
  • Supports safer, enclosed switchboard construction without requiring additional disposable insulation materials
Warranty Information

CHINT warranty coverage for other low-voltage apparatus is generally 27 months from the date of manufacture when supplied through authorised sales channels, subject to the applicable sales agreement and warranty terms.

Available Now

Available through authorised CHINT distributors in Australia.
