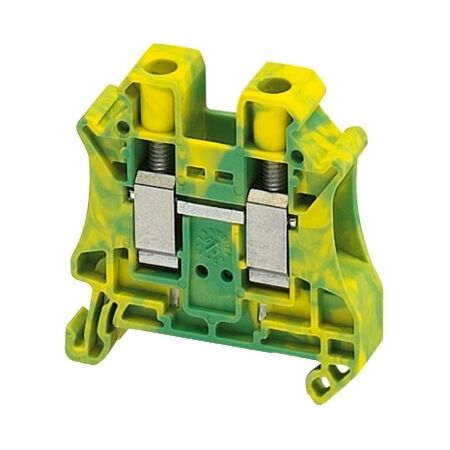

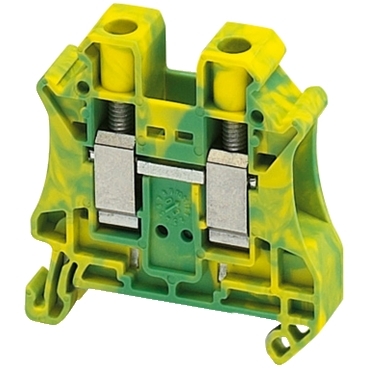

Terminal Din Mount 10mm GN/Y | 76A Current Rating | Green-Yellow Color | @Each of 1 | by GAF
The Terminal Din Mount 10mm GN/Y is designed for reliable earth connections in industrial and commercial electrical installations. With a robust 76A current rating and a clear green-yellow color for earth identification, this terminal block ensures safe and efficient grounding. Ideal for use in control panels, distribution boards, and switchboards, it features a durable flame-retardant polyamide housing for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Terminal Din Mount 10mm GN/Y | 76A Current Rating | Green-Yellow Color | @Each of 1 | by GAF
Brand: GAF
SKU: SCHNSYTRV102PE
Alternatively Known As: DIN rail earth terminal, 10mm² earth terminal block, green-yellow terminal block, grounding terminal DIN mount, SCHNSYTRV102PE
Technical Specifications
- Conductor size: 10mm²
- Current rating: 76A
- Connection type: 1x1 screw clamp
- Mounting: DIN rail
- Color: Green/Yellow (earth/ground identification)
- Material: Flame-retardant polyamide housing
- Operating temperature: -40°C to +120°C
- Dimensions (H x L x W): 45mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- 10mm² earth terminal block for DIN rail mounting
- Green-yellow color for clear earth/ground identification
- Single-level, 1x1 screw connection
- Rated for up to 76A current
- Robust construction for reliable electrical connections
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards and safe operation.
Applications
- Industrial control panels
- Electrical distribution boards
- Switchboards
- Machinery and automation systems
- General electrical installations requiring earth/ground connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports safe and reliable grounding, reducing electrical hazards and improving system safety.
- Durable materials extend product lifespan, reducing replacement frequency and waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The GAF Terminal Din Mount 10mm GN/Y Earth Terminal Block is available for immediate purchase. Ideal for industrial, commercial, and general electrical installations requiring reliable earth connections.
