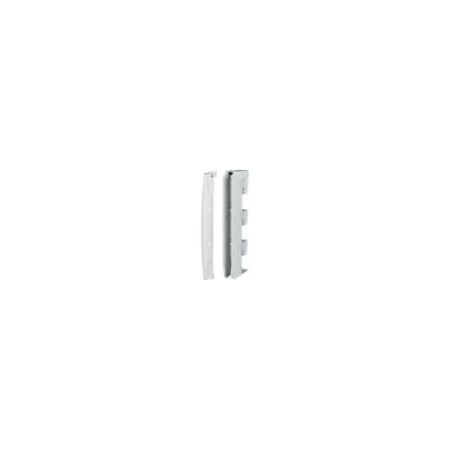

Terminal Module for Electrical Connections | 80 A Rated Current | Temperature Resistant to 120°C | Self-Extinguishing by Eaton
This terminal module is designed for electrical connections, featuring an 80 A rated operational current and temperature resistance up to 120°C. Ideal for industrial and commercial electrical installations, it ensures safety and compliance with UL 94 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Terminal Module for Electrical Connections | 80 A Rated Current | Temperature Resistant to 120°C | Self-Extinguishing by Eaton
Brand: Eaton
SKU: Y7-107205
Alternatively Known As: Terminal module, Terminal plate, Controlgear terminal block, Electrical terminal connector
Technical Specifications
- Rated operational current: 80 A
- Conductor cross section capacity: 1.5 mm² to 16 mm² (AWG 16 to AWG 6)
- Voltage rating: Max. 600 V AC
- Busbar thickness compatibility: 5 mm to 10 mm
- Busbar width compatibility: 12 mm to 30 mm
- Degree of protection: UL508A, CSA-C22.2 No. 14, IEC 60439-1, CE marking
- Temperature resistance: Up to 120 °C
- Creepage resistance: CTI 200
- Material: Silicon free, chlorine free
- Self-extinguishing according to UL 94
- Dimensions (H x L x W): 200mm x 90mm x 20mm
- Weight: 0.18 kg
Key Features
- Self-extinguishing according to UL 94
- Temperature resistant up to 120 °C
- Clamp plate for current limiting circuit breaker connections
- Suitable for conductor cross sections from 1.5 mm² to 16 mm²
- Rated operational current up to 80 A
- Compatible with 60 mm system connection rails
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with switchgear and controlgear enclosure standards to ensure compliance and safety.
Applications
- Switch and controlgear enclosures
- Electrical terminal connections in industrial and commercial electrical installations
- Suitable for flat rail, round conductor, and three-pole sector conductor connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Silicon-free and chlorine-free materials reduce environmental impact
- RoHS compliant, ensuring restriction of hazardous substances
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton xEffect SASY 60i Terminal Plate is available for immediate purchase, ideal for industrial and commercial electrical enclosure applications.
