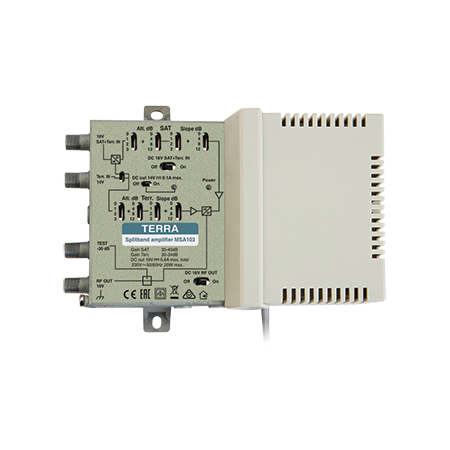

TERRA House Amplifier 47-2400MHz | 40dB Forward Gain | Compact Design by Matchmaster
TERRA house amplifier with 47-2400 MHz range and 40dB forward gain—ideal for homes and commercial spaces. Built for enhanced signal strength, with a compact design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TERRA House Amplifier 47-2400MHz with 40dB Forward Gain
Brand: Matchmaster
SKU: 14MM-MSA103
Alternatively Known As: House Amplifier, Satellite Amplifier, Wideband Amplifier, MDU Amplifier, Distribution Amplifier
Technical Specifications
- Frequency range: Terrestrial TV 47-790MHz, Satellite IF 250-2400MHz
- Gain (fixed slope pre-correction): Terrestrial TV 30-34dB, Satellite IF 35-40dB
- Gain adjustment: 15dB by 1dB step for both terrestrial and satellite
- Slope adjustment: 15dB by 1dB step for both terrestrial and satellite
- Input and output return loss: ≥ 12dB
- Output level: Terrestrial TV 115dBµV IMD3=60dB, Satellite IF 120dBµV IMD3=35dB
- Noise figure: Terrestrial TV 7dB, Satellite IF 8dB
- Output test point: -30dB
- DC feeding for external: Terrestrial TV 14V 100mA switchable, Satellite IF 18V 0.8A
- Power consumption: 3.5W (without external DC feeding), 20W (with external DC feeding)
- Operating temperature range: -20° to +50°C
- Dimensions (H x L x W): 52mm x 135mm x 180mm
- Weight: 0.62 kg
Key Features
- Foxtel approved (F31100) for SMS stacker and TDT systems
- Wideband (47-2400MHz) adjustable amplification with 40dB max gain for satellite band
- 34dB max gain for terrestrial band with built-in separate gain regulators for each band
- 15dB slope control for satellite and terrestrial bands with 1dB step adjustments
- >10dB return loss for satellite and terrestrial bands
- Selectable input configuration with separate satellite and terrestrial inputs or combined input
- DC output feeding for both terrestrial and satellite inputs (14VDC 100mA switchable and 18VDC 800mA switchable)
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with Foxtel and Australian standards.
Applications
- Large MDU systems
- Apartment distribution systems
- SMS (Satellite Multistacker) systems
- TDT and FTA systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Improves signal quality reducing the need for additional equipment and energy consumption
- Low power consumption of 3.5W without external DC feeding
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty terms for details.
Available Now
The Matchmaster TERRA House Amplifier MSA103 is available now for immediate purchase. Ideal for large MDU and apartment distribution systems requiring high gain and slope control.
