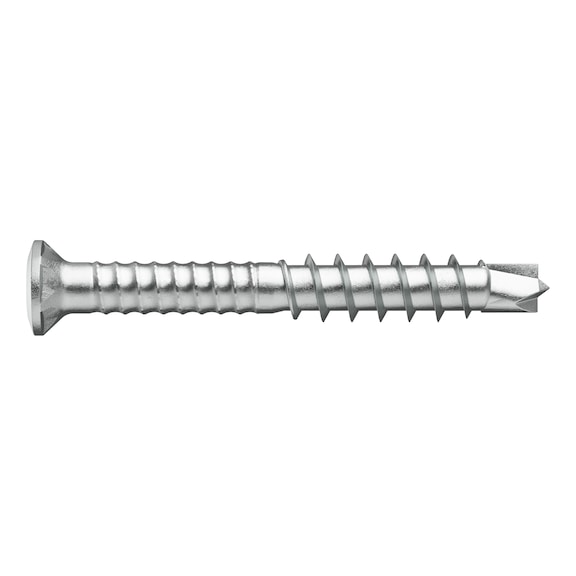

Terrace Construction Screw A2 Stainless Steel | Partial Thread & Raised Countersunk Head | Corrosion Resistant | @Pack of 200 | by Wurth
The Terrace Construction Screw A2 Stainless Steel is designed for outdoor timber fastening, featuring a partial thread and raised countersunk head for a clean finish. Ideal for professionals, this screw ensures secure connections in various applications, including terraces, fences, and wooden facades, while its corrosion-resistant A2 stainless steel construction guarantees long-lasting durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Terrace Construction Screw A2 Stainless Steel | Partial Thread & Raised Countersunk Head | Corrosion Resistant | @Pack of 200 | by Wurth
Brand: Wurth
SKU: 166815580
Alternatively Known As: Terrace screw, stainless steel wood screw, A2 stainless steel screw, raised countersunk head screw, partial thread screw
Technical Specifications
- Nominal diameter: 5.5 mm
- Length: 80 mm
- Thread length: 38 mm
- Screw-thread length with drill tip: 42.5 mm
- Head type: Raised countersunk head with milling pockets
- Head diameter: 7.5 mm
- Head height: 2.6 mm
- Internal drive: RW20
- Thread type: Wood screw thread, partial thread
- Thread form: Single start thread
- Core diameter: 3.6 mm
- Tip shape: Drilling tip
- Material: Stainless steel A2
- Surface finish: Plain
- Max screw-in angle: 90 degrees
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood
- Area of application: Outdoors, balcony, element construction, facades, wet areas, timber construction, timber panel construction, structural woodwork, play equipment, boardwalk, terrace, fence
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.6mm x 80mm x 7.5mm
- Weight: 1.53 kg
Key Features
- Partial thread screw with grooved shank made of high-quality austenitic A2 stainless steel
- Small raised countersunk head with milling pockets for visually appealing fastening
- Suitable for fastening close to edges without pre-drilling
- Ideal power transmission with RW drive and larger contact area at the bit
- Tight-fit recess for precise positioning and fewer bit changes
- Advanced centring drill tip for clean drilling without chipping
- High milling power and chip collection for clean countersinking in softwood and hardwood
- Asymmetrical single thread for maximum screw connection reliability
- Compatible with 90° metal countersink
- Universal use in wood and metal connections
Professional Installation Requirements
- Professional installation recommended for optimal fastening performance and structural safety in timber constructions.
Applications
- Outdoor terrace floorboards fastening
- Wooden facades and skirting boards
- Fences and balcony constructions
- Timber panel and structural woodwork
- Wet areas and element construction
- Play equipment and boardwalks
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from corrosion-resistant stainless steel for long-lasting durability reducing replacement waste
- RoHS-compliant ensuring environmentally safe materials
- Enables secure fastening reducing material damage and waste
Warranty Information
Complies with ETA-11/0190 approval ensuring product reliability and quality.
Available Now
The Wurth ASSYplus 4 A2 SRCS Terrace Construction Screw is available for immediate purchase, ideal for outdoor timber fastening applications requiring corrosion resistance and high durability.
