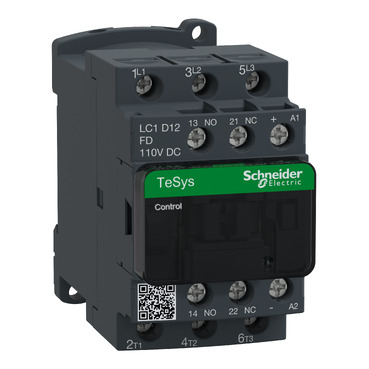

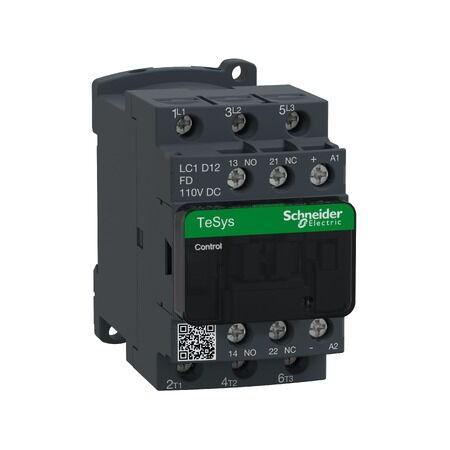

TeSys 3 Pole Contactor | 5.5kW AC3 | 12A Current | 110V DC Coil | @Pack of 1 | by Clipsal
The TeSys 3 Pole Contactor is designed for AC3 applications, handling up to 5.5kW at 400V with a rated operational current of 12A. Featuring a 110V DC coil and equipped with 1 Normally Open and 1 Normally Closed auxiliary contact, this robust contactor is perfect for motor control in industrial automation and power distribution systems. Its compact design ensures easy installation and high electrical endurance, making it a reliable choice for control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys 3 Pole Contactor | 5.5kW AC3 | 12A Current | 110V DC Coil | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC1D12FD
Alternatively Known As: Schneider LC1D12FD, TeSys D Contactor, 12A 3 Pole Contactor, 110VDC Coil Contactor, Industrial Motor Contactor
Technical Specifications
- Rated operational current (AC3): 12A
- Rated operational power (AC3, 400V): 5.5kW
- Coil voltage: 110V DC
- Auxiliary contacts: 1NO + 1NC
- Number of poles: 3
- Electrical durability: 1.2 million cycles (AC3)
- Mechanical durability: 10 million cycles
- Mounting: DIN rail or screw
- Standards: IEC 60947-4-1, IEC 60947-5-1
- Dimensions (H x L x W): 82mm x 86mm x 45mm
- Weight: 0.45 kg
Key Features
- 3 pole contactor for AC3 applications up to 5.5kW (400V)
- Rated operational current: 12A
- Equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact
- 110V DC coil for reliable operation in control panels
- Compact and robust design for easy installation
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Motor control in industrial automation
- Switching and control of electrical circuits
- Pumps, fans, compressors, and HVAC systems
- Lighting and power distribution panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient coil design reduces power consumption in control circuits.
- Long operational life minimizes replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal TeSys LC1D12FD 3 Pole Contactor is available for immediate purchase. Ideal for industrial motor control, automation panels, and power distribution systems.
