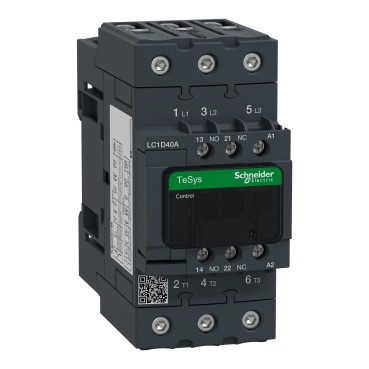

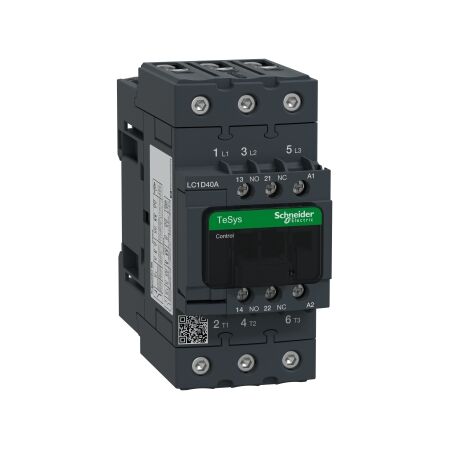

TeSys 3P EVLK Contactor | 40A Motor Control | 18.5kW AC3 | 127VAC Coil | @Pack of 1 | by Clipsal
The TeSys 3P EVLK Contactor is designed for reliable motor control, featuring a 40A rated operational current and supporting up to 18.5kW motor power at 400V. Ideal for industrial machinery, pumps, and HVAC systems, this compact contactor ensures high electrical endurance and is perfect for commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys 3P EVLK Contactor | 40A Motor Control | 18.5kW AC3 | 127VAC Coil | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC1D40AFC7
Alternatively Known As: TeSys 3 Pole Contactor, 40A Motor Contactor, 18.5kW AC3 Contactor, LC1D40AFC7, Schneider Electric Contactor
Technical Specifications
- Number of Poles: 3
- Rated Operational Current (AC3): 40A
- Maximum Motor Power (AC3, 400V): 18.5kW
- Coil Voltage: 127VAC
- Frequency: 50/60Hz
- Electrical Endurance: 1.2 million operations (AC3)
- Mechanical Endurance: 10 million operations
- Mounting: DIN rail or screw mounting
- Auxiliary Contacts: 1 NO + 1 NC (standard)
- Standards: IEC 60947-4-1, IEC 60947-5-1
- Dimensions (H x L x W): 120mm x 86mm x 77mm
- Weight: 0.7 kg
Key Features
- Three-pole contactor for reliable motor control
- Rated operational current: 40A (AC3)
- Supports up to 18.5kW motor power at 400V (AC3)
- Coil voltage: 127VAC
- Compact and robust design for panel mounting
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Motor control for industrial machinery
- Pumps, compressors, and HVAC systems
- Switching and control of three-phase loads in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient switching reduces power losses in motor control applications.
- Durable design extends product lifespan, reducing replacement frequency and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal TeSys 3P EVLK Contactor 40A 18.5kW AC3 127VAC (SCHLC1D40AFC7) is available for immediate purchase. Ideal for industrial and commercial motor control applications.
