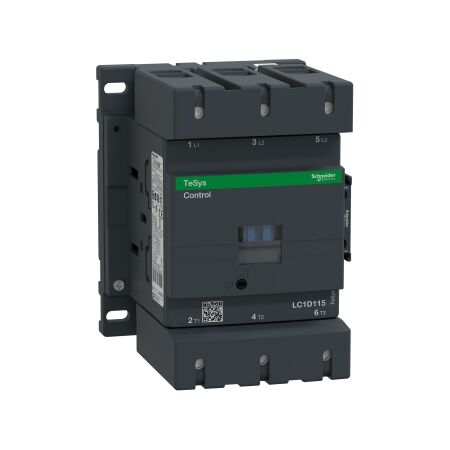

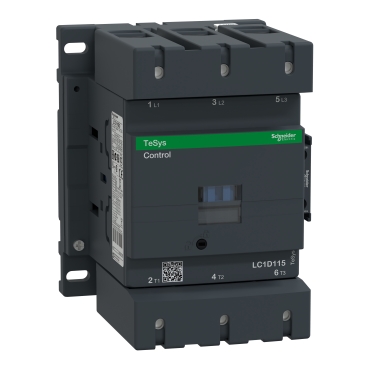

TeSys D Contactor | 3-Pole Switching | 115A AC-3 | 220V DC Coil | @Pack of 1 | by Clipsal
The TeSys D Contactor is designed for reliable motor control in industrial automation, featuring a robust 3-pole design with a rated operational current of 115A at 440V. With a standard 220V DC coil, this contactor ensures efficient operation and easy integration into control panels, making it ideal for commercial and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys D Contactor | 3-Pole Switching | 115A AC-3 | 220V DC Coil | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC1D115MD
Alternatively Known As: TeSys D Contactor, 3 Pole Contactor, Industrial Contactor, Schneider LC1D115MD, Motor Starter Contactor
Technical Specifications
- Type: TeSys D Contactor
- Poles: 3P (3 Normally Open)
- Rated Operational Current: 115A (AC-3, 440V)
- Coil Voltage: 220V DC
- Utilization Category: AC-3
- Rated Insulation Voltage: 690V
- Conforming to IEC 60947-4-1
- Electrical Durability: 1.2 million cycles
- Mechanical Durability: 10 million cycles
- Mounting: DIN rail or screw fixing
- Auxiliary Contacts: Optional add-on
- Dimensions (H x L x W): 130mm x 140mm x 120mm
- Weight: 1.5 kg
Key Features
- 3-pole (3 NO) contactor for reliable switching
- AC-3 utilization category up to 440V, 115A
- Standard 220V DC coil for efficient operation
- TeSys D series for compact and robust design
- High electrical and mechanical endurance
- Easy integration into control panels
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Motor control in industrial automation
- Switching of electrical circuits in commercial and industrial buildings
- Control of lighting, heating, and ventilation systems
- Suitable for use in panel boards and distribution boards
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Energy-efficient coil design reduces power consumption
- Long operational life minimizes replacement waste
- RoHS compliant materials for reduced environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys D Contactor SCHLC1D115MD is available for immediate purchase. Ideal for industrial and commercial motor control and automation applications.
