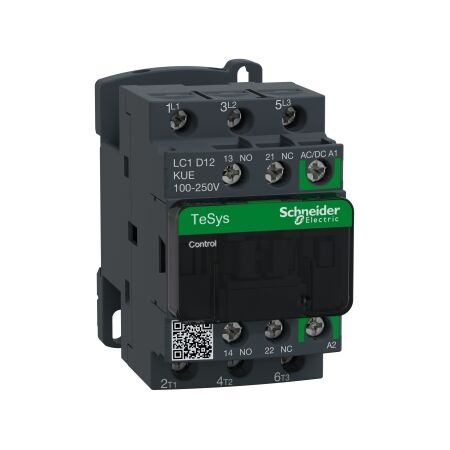

TeSys D Contactor 3P 12A | 100-250VAC/DC Coil | IP20 by Clipsal

BRAND: Clipsal
SKU: LC1D12KUE
$152.30 List price: $228.40
+ −
30 Days Return Delivery Options
TeSys D contactor with 3 poles and 12A operational current—ideal for industrial motor control and resistive load applications. Built for durability, with 15 million mechanical cycles and IP20 protection.

Product Name/Title: TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 12A, 100-250VAC/DC coil

Brand: Clipsal

SKU: LC1D12KUE

Alternatively Known As: TeSys Deca Contactor, LC1D12KUE, 3P Contactor

Technical Specifications
  • Rated operational voltage: <= 690 V AC
  • Rated operational current: 12 A at <= 440 V AC-3
  • Control circuit voltage: 100...250 V AC/DC
  • IP degree of protection: IP20
  • Operating temperature: -40...60 °C
  • Inrush power: 25 VA at 50/60 Hz
  • Hold-in power consumption: 1.6 VA at 50/60 Hz
  • Dimensions (H x L x W): 77mm x 86mm x 45mm
  • Weight: 0.392 kg
Key Features
  • 3 poles (3 NO) for reliable switching
  • Rated operational current of 12A at 440V AC-3
  • Mechanical durability of 15 million cycles
  • Electrical durability of 2.3 million cycles at 11A AC-3
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor control and resistive load applications
Standards & Compliance
  • Complies with EN/IEC 60947-4-1 for safety and performance standards.
Environmental Benefits
  • Halogen-free plastic parts and cables
  • Packaging made with recycled cardboard
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial motor control applications.

LC1D12KUE (LC1D12KUE, 251 Kb) [Download]
