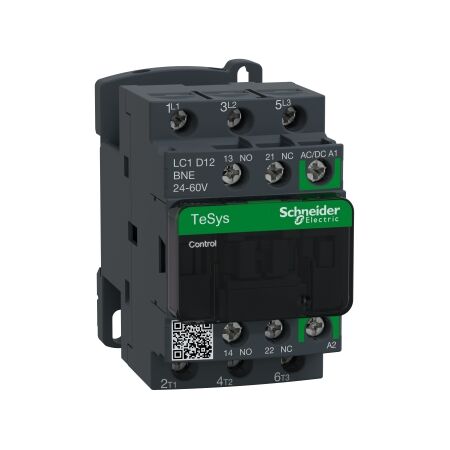

TeSys D Contactor 3P 12A | 24-60VAC/DC Coil | IP20 Protection by Clipsal

BRAND: Clipsal
SKU: LC1D12BNE
$152.30 List price: $228.40
+ −
30 Days Return Delivery Options
TeSys D contactor with 3 poles and 12A operational current—ideal for industrial motor control. Built for durability with 15 million mechanical cycles and IP20 protection.

Product Name/Title: TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 12A, 24-60VAC/DC coil

Brand: Clipsal

SKU: LC1D12BNE

Alternatively Known As: TeSys Deca Contactor, LC1D12BNE, 3P Contactor

Technical Specifications
  • Rated operational voltage: <= 690V AC
  • Rated operational current: 12A at <= 440V AC-3
  • Control circuit voltage: 24...60V AC/DC
  • IP degree of protection: IP20
  • Operating temperature: -40...60 °C
  • Flame retardance: V1 conforming to UL 94
  • Dimensions (H x L x W): 77mm x 86mm x 45mm
  • Weight: 0.396 kg
Key Features
  • 3 poles with 3 normally open contacts
  • Rated operational current of 12A at 440V AC-3
  • Mechanical durability of 15 million cycles
  • Electrical durability of 2.3 million cycles at 11A AC-3
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor control and resistive load applications
Standards & Compliance
  • Complies with EN/IEC 60947-4-1 and EN/IEC 60947-5-1
Environmental Benefits
  • Green Premium product with recyclable packaging.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial applications requiring reliable motor control.

LC1D12BNE (LC1D12BNE, 251 Kb) [Download]
