Home/Electrical/Switchgear/Contactors & Equipment/TeSys D Contactor 3P 25A | 24-60VAC/DC Coil | IP20 Protection by Clipsal

Trade Discount 33%

TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 25A, 24-60VAC/DC coil

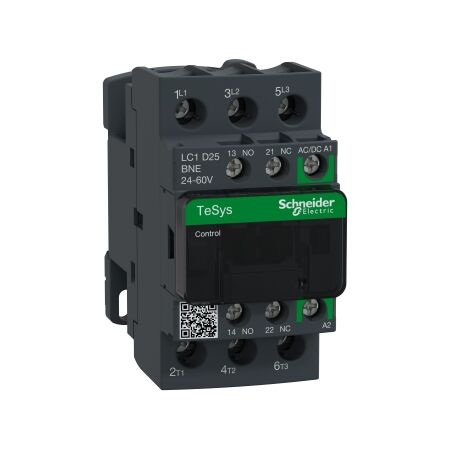

TeSys D Contactor 3P 25A | 24-60VAC/DC Coil | IP20 Protection by Clipsal

BRAND: Clipsal

SKU: LC1D25BNE

$243.10 List price: $364.70

+ −

30 Days Return Delivery Options

TeSys D contactor with 3 poles and 25A operational current—ideal for industrial motor control. Built for durability with 15 million mechanical cycles and IP20 protection.

Description
Attachments

Product Name/Title: TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 25A, 24-60VAC/DC coil

Brand: Clipsal

SKU: LC1D25BNE

Alternatively Known As: TeSys Deca Contactor, LC1D25BNE, 3P Contactor

Technical Specifications

Rated operational voltage: <= 690V AC
Rated operational current: 25A at <= 440V AC-3
Control circuit voltage: 24...60V AC/DC
Inrush power: 15 VA at 50/60 Hz
Hold-in power consumption: 0.9 VA at 50/60 Hz
Rated insulation voltage: 690V
Overvoltage category: III
Pollution degree: 3
Rated impulse withstand voltage: 6 kV
Dimensions (H x L x W): 85mm x 92mm x 45mm
Weight: 0.458 kg

Key Features

3 poles with 3 normally open contacts
Rated operational current of 25A at 440V AC-3
Mechanical durability of 15 million cycles
Electrical durability of 2 million cycles
IP20 front face protection

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and resistive load applications

Standards & Compliance

Complies with EN/IEC 60947-4-1 and other relevant standards.

Environmental Benefits

Packaging made with recycled cardboard
Halogen free plastic parts & cables

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial applications requiring reliable motor control.

LC1D25BNE (LC1D25BNE, 247 Kb) [Download]
