TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 48-130VAC/DC coil

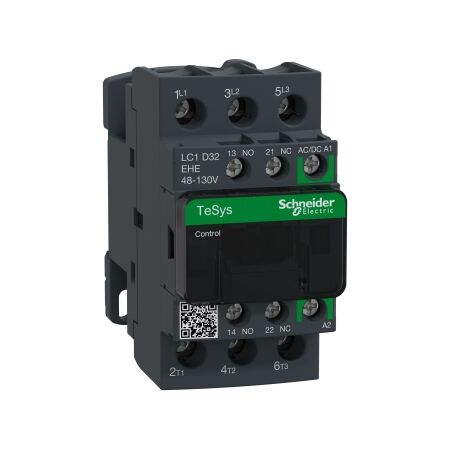

TeSys D Contactor 3P 32A | 48-130VAC/DC Coil | IP20 Protection by Clipsal

BRAND: Clipsal

SKU: LC1D32EHE

$294.70 List price: $442.10

+ −

30 Days Return Delivery Options

TeSys D contactor with 3 poles and 32A operational current—ideal for industrial motor control. Built for durability with 15 million mechanical cycles and IP20 protection, suitable for resistive load applications.

Description
Attachments

Product Name/Title: TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 48-130VAC/DC coil

Brand: Clipsal

SKU: LC1D32EHE

Alternatively Known As: TeSys Deca Contactor, LC1D32EHE, 3P Contactor

Technical Specifications

Rated operational voltage: <= 690V AC
Rated operational current: 32A at <= 440V AC-3
IP degree of protection: IP20
Control circuit type: AC/DC at 50/60 Hz
Inrush power: 25 VA at 50/60 Hz
Hold-in power consumption: 1.3 VA at 50/60 Hz
Dimensions (H x L x W): 85mm x 92mm x 45mm
Weight: 0.458 kg

Key Features

3 poles with 3 normally open contacts
Rated operational current of 32A at 440V AC-3
Mechanical durability of 15 million cycles
Electrical durability of 2.1 million cycles
Control circuit voltage range of 48-130V AC/DC

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and resistive load applications

Standards & Compliance

Complies with EN/IEC 60947-4-1 and UL 60947-4-1 for safety and performance standards.

Environmental Benefits

Green Premium product with environmentally friendly packaging.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial applications requiring reliable motor control.

LC1D32EHE (LC1D32EHE, 247 Kb) [Download]
