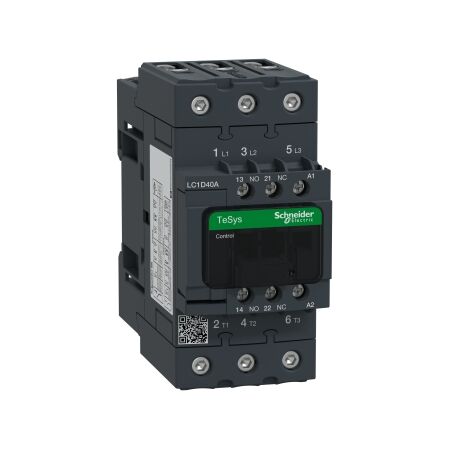

TeSys D Contactor 3P 40A | 230VAC Coil | IP20 Protection by Clipsal
TeSys D contactor with 3 poles and 40A current rating—ideal for industrial motor control. Built for durability with 230VAC coil and IP20 protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 230VAC 50/60Hz coil
Brand: Clipsal
SKU: LC1D40AP7
Alternatively Known As: TeSys Deca Contactor, LC1D40AP7, 3 Pole Contactor
Technical Specifications
- Rated operational voltage: <= 690V AC, 25...400Hz
- Rated operational current: 40A at <= 440V AC for AC-3
- Insulation resistance: > 10 MOhm for signalling circuit
- IP degree of protection: IP20 front face
- Control circuit voltage: 230V AC 50/60Hz
- Rated breaking capacity: 800A at 440V for power circuit
- Dimensions (H x L x W): 122mm x 120mm x 55mm
- Weight: 0.85 kg
Key Features
- Rated operational current of 40A at 440V AC for AC-3 applications.
- Mechanical durability of 6 million cycles.
- Electrical durability of 1.5 million cycles at 40A AC-3.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and resistive load applications
Standards & Compliance
- Complies with EN 60947-4-1 and IEC 60947-5-1 for safety and performance standards.
Environmental Benefits
- PVC free design contributes to reduced environmental impact.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial applications requiring reliable motor control.
