Home/Electrical/Switchgear/Contactors & Equipment/TeSys D Contactor 3P 40A | 24V DC Coil | EverLink by Clipsal

Trade Discount 33%

TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 24VDC coil, EverLink

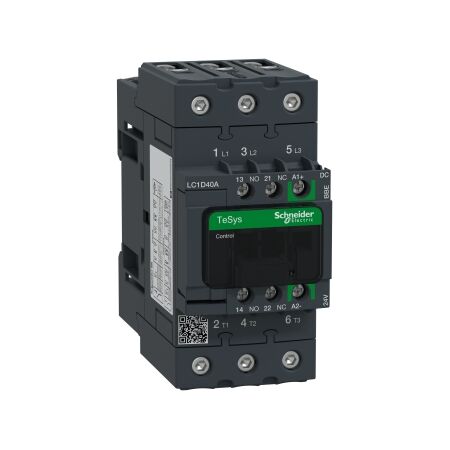

TeSys D Contactor 3P 40A | 24V DC Coil | EverLink by Clipsal

BRAND: Clipsal

SKU: LC1D40ABBE

$323.50 List price: $485.30

+ −

30 Days Return Delivery Options

TeSys D contactor with 3 poles and 40A rating—ideal for industrial motor control. Built for reliability with EverLink connectors and 24V DC coil, ensuring secure and efficient operation.

Description
Attachments

Product Name/Title: TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 24VDC coil, EverLink

Brand: Clipsal

SKU: LC1D40ABBE

Alternatively Known As: TeSys Deca Contactor, 3P Contactor, AC-3 Contactor

Technical Specifications

Rated operational voltage: <= 690V AC
Rated operational current: 40A at <= 440V AC-3
Mechanical durability: 6 million cycles
Electrical durability: 2 million cycles at 35A AC-3
Insulation resistance: > 10 MOhm for signalling circuit
IP degree of protection: IP20
Operating temperature: -40 to 60 °C
Dimensions (H x L x W): 122mm x 120mm x 55mm
Weight: 1.055 kg

Key Features

3 poles with 3 normally open contacts (3 NO)
Rated operational current of 40A at 440V AC-3
24V DC coil with built-in bidirectional peak limiting
EverLink BTR screw connectors for reliable connections
Mechanical durability of 6 million cycles

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and resistive load applications

Standards & Compliance

Complies with EN 60947-4-1 and IEC 60947-4-1 for safety and performance standards.

Environmental Benefits

Packaging made with recycled cardboard
Halogen free plastic parts & cables

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial motor control applications.

LC1D40ABBE (LC1D40ABBE, 247 Kb) [Download]
