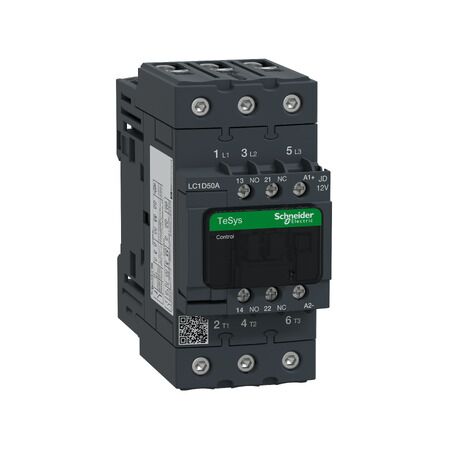

TeSys D Contactor 3P 50A | 12V DC Coil | IP20 Protection by Clipsal
TeSys D contactor with 3 poles and 50A operational current—ideal for industrial motor control. Built for durability with 12V DC coil and IP20 protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 12VDC standard coil
Brand: Clipsal
SKU: LC1D50AJD
Alternatively Known As: TeSys Deca Contactor, LC1D50AJD, 3P Contactor
Technical Specifications
- Rated operational voltage: <= 690V AC, 25...400Hz
- Rated operational current: 50A at <= 440V AC (AC-3)
- Insulation resistance: > 10 MOhm for signalling circuit
- IP degree of protection: IP20 front face
- Control circuit voltage: 12V DC
- Dimensions (H x L x W): 122mm x 120mm x 55mm
- Weight: 0.93 kg
Key Features
- 3 poles with 3 normally open contacts (3 NO)
- Rated operational current of 50A at 440V AC
- Mechanical durability of 10 million cycles
- Electrical durability of 1.45 million cycles at 50A AC-3
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and resistive load applications
Standards & Compliance
- Complies with EN 60947-4-1 and IEC 60947-5-1 for safety and performance standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial motor control applications.
