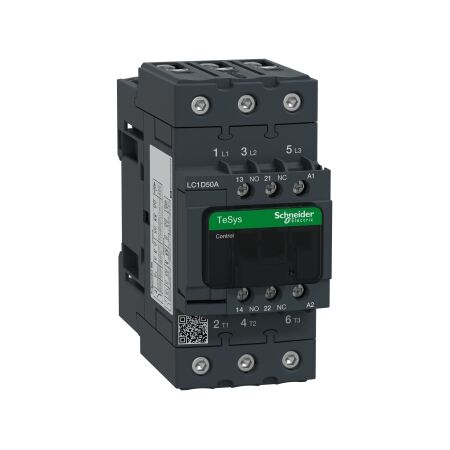

TeSys D Contactor 3P 50A | 240VAC Coil | IP20 Protection by Clipsal
TeSys D contactor with 50A operational current and 240VAC coil—ideal for industrial motor control. Built for durability, with IP20 protection and compliance with IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 240VAC 50/60Hz coil
Brand: Clipsal
SKU: LC1D50AU7
Alternatively Known As: TeSys Deca Contactor, LC1D50AU7, 3 Pole Contactor
Technical Specifications
- Rated operational voltage: <= 690V AC, 25...400Hz
- Rated operational current: 50A at <= 440V AC (AC-3)
- Control circuit voltage: 240V AC 50/60Hz
- Insulation resistance: > 10 MOhm for signalling circuit
- Rated breaking capacity: 900A at 440V for power circuit
- Rated impulse withstand voltage: 6kV conforming to IEC 60947
- Dimensions (H x L x W): 122mm x 120mm x 55mm
- Weight: 0.855 kg
Key Features
- Rated operational current of 50A at <= 440V AC
- Mechanical durability of 6 million cycles
- Electrical durability of 1.45 million cycles at 50A AC-3
- IP20 front face protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and resistive load applications
Standards & Compliance
- Complies with EN 60947-4-1 and IEC 60947-5-1 for safety and performance standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial applications requiring reliable motor control.
