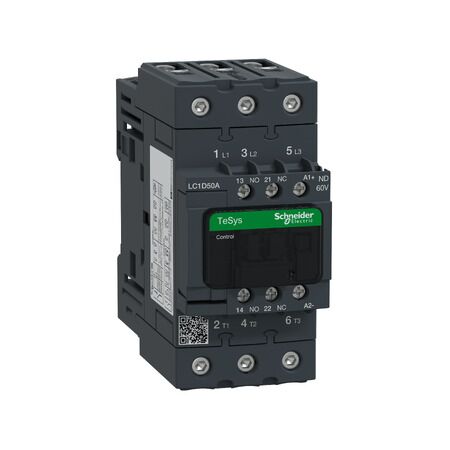

TeSys D Contactor 3P 50A | 0-440V AC | 60V DC Coil by Clipsal
TeSys D contactor with 3 poles and 50A operational current—ideal for industrial motor control and resistive load applications. Built for durability with 10 million mechanical cycles and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 60VDC standard coil
Brand: Clipsal
SKU: LC1D50AND
Alternatively Known As: TeSys Deca Contactor, LC1D50AND, 3 Pole Contactor
Technical Specifications
- Rated operational voltage: <= 690 V AC, 25...400 Hz
- Rated operational current: 50 A at <= 440 V AC AC-3
- Control circuit voltage: 60 V DC
- Insulation resistance: > 10 MOhm for signalling circuit
- Rated breaking capacity: 900 A at 440 V for power circuit
- Rated impulse withstand voltage: 6 kV conforming to IEC 60947
- Dimensions (H x L x W): 122mm x 120mm x 55mm
- Weight: 0.93 kg
Key Features
- Rated operational current of 50 A at <= 440 V AC
- Mechanical durability of 10 million cycles
- Electrical durability of 1.45 million cycles at 50 A AC-3
- IP20 front face protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and resistive load applications
Standards & Compliance
- Complies with AS/NZS standards for electrical equipment.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial applications requiring reliable motor control.
