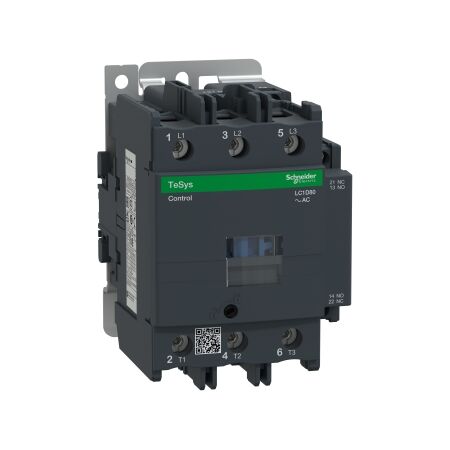

TeSys D Contactor 3P 80A | 415V AC Coil | IP20 Protection by Clipsal
TeSys D contactor with 80A operational current and 415V AC coil—ideal for industrial motor control. Built for durability with IP20 protection and 4 million mechanical cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: <= 690V AC
- Rated operational current: 80A at <= 440V AC AC-3
- Control circuit voltage: 415V AC 50/60Hz
- Insulation resistance: > 10 MOhm for signalling circuit
- Rated breaking capacity: 1100A at 440V for power circuit
- Operating temperature: -40 to 60 °C
- Dimensions (H x L x W): 127mm x 130mm x 85mm
- Weight: 1.59 kg
Key Features
- Rated operational current of 80A at <= 440V AC
- Mechanical durability of 4 million cycles
- Electrical durability of 1.5 million cycles at 80A AC-3
- IP20 front face protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and resistive load applications
Standards & Compliance
- Complies with EN 60947-4-1 and IEC 60947-4-1 for safety and performance standards.
Environmental Benefits
- Green Premium product status
- PVC free packaging
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial applications requiring reliable motor control.
