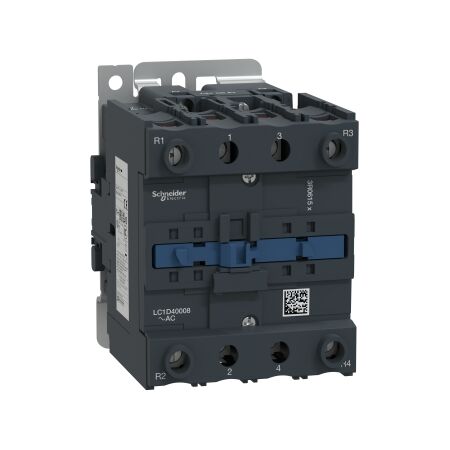

TeSys D Contactor 4P 60A | 48V AC Coil | IP20 Rated by Clipsal

BRAND: Clipsal
SKU: LC1D40008E5
$668.10 List price: $1,002.10
+ −
30 Days Return Delivery Options
TeSys D contactor with 4 poles (2NO+2NC) and 60A rating—ideal for motor control and automation systems. Built for industrial and commercial use, with 48V AC coil and IP20 protection.

Product Name/Title: TeSys D, Contactor, 4P(2NO+2NC),AC-1,<=440V 60A,48V AC 50Hz coil

Brand: Clipsal

SKU: LC1D40008E5

Alternatively Known As: TeSys Contactor, 4 Pole Contactor, AC Contactor, Motor Contactor

Technical Specifications
  • Rated operational voltage: <= 690 V AC, 25...400 Hz
  • Rated insulation voltage: 600 V CSA certified, 690 V conforming to IEC 60947-4-1
  • Control circuit voltage: 48 V AC 50 Hz
  • IP degree of protection: IP20
  • Operating temperature: -40...60 °C
  • Inrush power: 160 VA at 50 Hz
  • Hold-in power consumption: 15 VA at 50 Hz
  • Dimensions (H x L x W): 127mm x 125mm x 85mm
  • Weight: 1.44 kg
Key Features
  • 4 poles with 2 normally open and 2 normally closed contacts.
  • Rated operational current of 60 A at <= 440 V AC.
  • Mechanical durability of 6 million cycles.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor control and automation systems
  • Commercial: HVAC systems, lighting control
Standards & Compliance
  • Complies with CSA C22.2 No 14, EN 60947-4-1, IEC 60947-4-1
Environmental Benefits
  • Packaging made with recycled cardboard.
  • Packaging without single use plastic.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal TeSys D Contactor is available now for immediate purchase. Ideal for industrial applications requiring reliable motor control.

LC1D40008E5 (LC1D40008E5, 249 Kb) [Download]
