TeSys D Mechanical Latch Block | 110-127V AC/DC | IP2X Protection | Compact by Clipsal
TeSys D mechanical latch block with 110-127V AC/DC voltage and IP2X protection—ideal for industrial applications. Built for durability with 500,000 cycles, compatible with multiple TeSys products.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

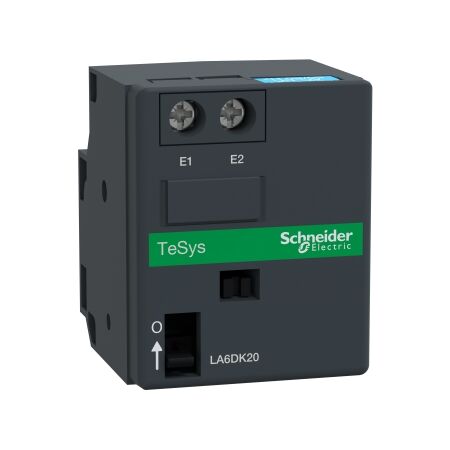

Product Name/Title: TeSys D, Mechanical latch block, TeSys Deca, 110...127V AC/DC
Brand: Clipsal
SKU: LA6DK20F
Alternatively Known As: TeSys Deca Mechanical Latch Block, TeSys D Latch Block
Technical Specifications
- Control circuit voltage: 110/127 V AC 50/60 Hz, 110/127 V DC
- Rated insulation voltage: 690 V conforming to IEC 60947-5-1
- Power required: 25 VA for AC circuit, 30 W for DC circuit
- Maximum operating rate: 1200 cyc/h
- On-load factor: 10%
- Dimensions (H x L x W): 47mm x 65mm x 50mm
- Weight: 0.09 kg
Key Features
- Mechanical durability of 500,000 cycles.
- Compatible with multiple TeSys products.
- IP2X protection rating.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Industrial: Suitable for various industrial applications requiring mechanical latching.
Standards & Compliance
- Complies with IEC 60529 for IP rating.
Environmental Benefits
- Packaging made with recycled cardboard.
- Packaging without single use plastic.
Warranty Information
18 months warranty.
Available Now
The Clipsal TeSys D Mechanical Latch Block is available now for immediate purchase. Ideal for industrial applications.
