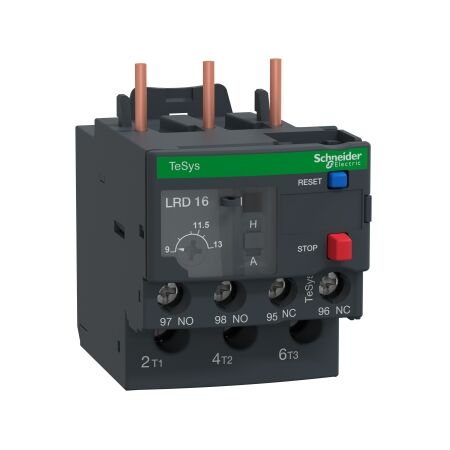

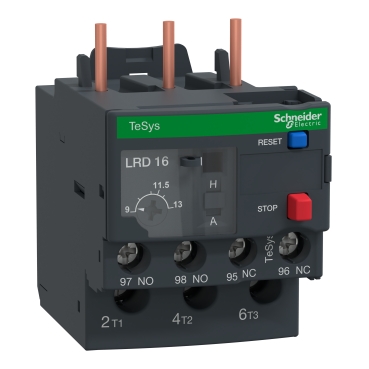

TESYS D Overload Relay | 9-13A Current Range | Class 10A Tripping | Manual/Automatic Reset | @Each of 1 | by Clipsal
The TESYS D Overload Relay is designed for reliable motor protection, featuring a current range of 9-13A and Class 10A tripping characteristics. Ideal for industrial applications such as pumps, fans, and HVAC systems, it offers both manual and automatic reset options, ensuring optimal performance and safety in your automation panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TESYS D Overload Relay | 9-13A Current Range | Class 10A Tripping | Manual/Automatic Reset | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLR3D16
Alternatively Known As: TeSys Deca Thermal Overload Relay, LR3D16, Schneider Overload Relay, Motor Overload Protector, 9-13A Overload Relay
Technical Specifications
- Current Range: 9-13A
- Tripping Class: 10A
- Reset: Manual/Automatic
- Mounting: Direct on TeSys D contactors
- Phase Failure Sensitivity: Yes
- Auxiliary Contacts: 1 NO + 1 NC
- Operating Temperature: -20°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 70mm x 70mm x 45mm
- Weight: 0.15 kg
Key Features
- Thermal overload relay for TeSys D contactors
- Current range: 9 to 13A
- Class 10A tripping characteristics
- Manual and automatic reset options
- Phase failure sensitivity
- Direct mounting on contactor
- Reliable protection against overloads
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure correct integration with motor starters and compliance with safety standards.
Applications
- Motor protection in industrial control panels
- Pumps, fans, compressors, and conveyor systems
- HVAC equipment
- General industrial automation
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents motor damage, reducing waste and extending equipment lifespan
- Improves energy efficiency by protecting motors from excessive current draw
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal TESYS D Overload Relay SCHLR3D16 is available for immediate purchase. Ideal for industrial motor protection and automation panels.
