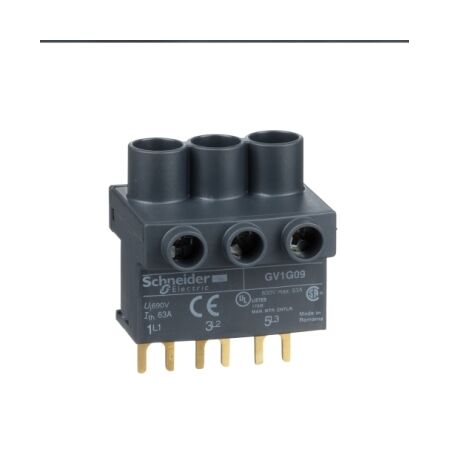

TeSys D Terminal Block 3P | 63A 690V | Screw Clamp | IP20 by Clipsal
TeSys D terminal block with 63A/690V rating and screw clamp terminals—ideal for industrial power distribution. Built for secure connections, with IP20 protection and direct insertion design.
Sign in
Please login to continue to your account.
Product Name/Title: TeSys D, Terminal block, TeSys Deca & TeSys U, 3P, from the top, for supply to one or more GV2G busbar sets
Brand: Clipsal
SKU: GV1G09
Alternatively Known As: TeSys GV Terminal Block, 3P Terminal Block, GV1G09 Terminal Block
- Rated operational current: 63A
- Rated insulation voltage: 690V conforming to IEC 60947-1
- IP degree of protection: IP20 conforming to IEC 60529
- Connection type: Screw clamp terminals for various cable sizes
- Dimensions (H x L x W): 45mm x 70mm x 60mm
- Weight: 0.04 kg
- 3 phases, 63A/690V rated operational current.
- Screw clamp terminals for secure connections.
- Designed for direct insertion on top terminals of devices.
- Professional installation is recommended for optimal safety and performance.
- Industrial: Power distribution and control systems
- Complies with relevant IEC standards for safety and performance.
- Green Premium compliant (RoHS/REACh) for reduced environmental impact.
18 months warranty against manufacturing defects.
The Clipsal TeSys D Terminal Block is available now for immediate purchase. Ideal for industrial power distribution applications.
