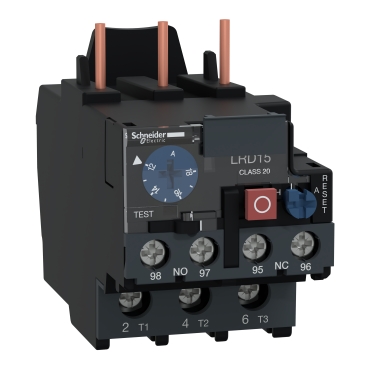

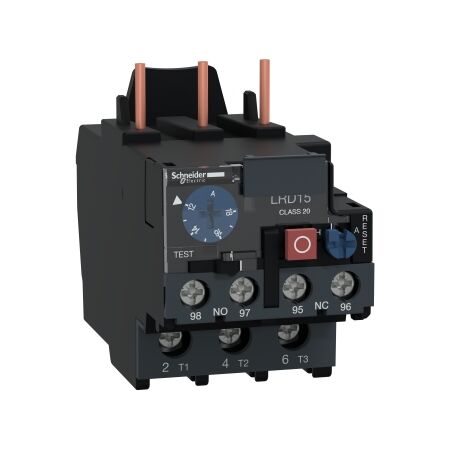

TESYS D Thermal Overload Relay 12-18A | Adjustable Current Range | Manual & Automatic Reset | Trip Class 10A | @Pack of 1 | by Clipsal
The TESYS D Thermal Overload Relay 12-18A is designed for reliable motor protection in industrial applications. With an adjustable current range of 12-18A and both manual and automatic reset options, it ensures fast response to overload conditions. Ideal for automation systems and general industrial machinery, this relay features phase failure sensitivity and test functions for easy maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TESYS D Thermal Overload Relay 12-18A | Adjustable Current Range | Manual & Automatic Reset | Trip Class 10A | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLRD1521
Alternatively Known As: TESYS D Overload Relay, LRD1521, Schneider Electric Thermal Overload, Motor Overload Relay 12-18A
Technical Specifications
- Current adjustment range: 12-18A
- Trip class: 10A
- Reset: Manual/Automatic
- Mounting: Direct to TESYS D contactors
- Phase failure sensitivity: Yes
- Test and stop functions: Yes
- Auxiliary contacts: 1 NO + 1 NC
- Operating temperature: -20°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 70mm x 75mm x 45mm
- Weight: 0.25 kg
Key Features
- Adjustable current range: 12-18A
- Manual and automatic reset options
- Trip class 10A for fast motor protection
- Direct mounting to contactors
- Phase failure sensitivity
- Test and stop functions for easy maintenance
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards and safe operation.
Applications
- Motor protection in industrial control panels
- Automation systems
- Pumps, fans, compressors, and conveyors
- General industrial machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents motor damage, reducing equipment waste
- Enhances energy efficiency by protecting motors from overload
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal TESYS D Thermal Overload Relay 12-18A (SCHLRD1521) is available for immediate purchase. Ideal for industrial motor protection and automation panels.
