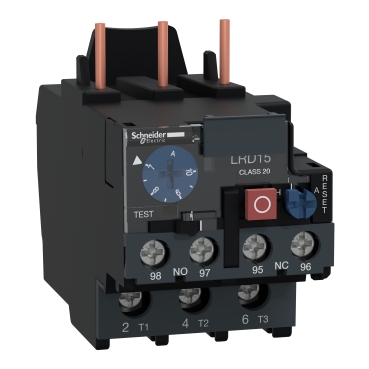

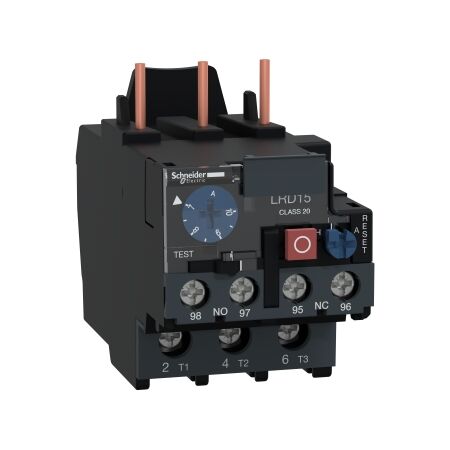

TESYS D Thermal Overload Relay | 7 to 10A Adjustable Current | Class 20 Tripping | Manual & Automatic Reset | @Pack of 1 | by Clipsal
The TESYS D Thermal Overload Relay is designed for reliable motor protection, featuring an adjustable current range of 7 to 10A and Class 20 tripping for enhanced safety. Ideal for industrial automation and control panels, it offers both manual and automatic reset options, ensuring optimal performance in HVAC systems, pumps, and conveyors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TESYS D Thermal Overload Relay | 7 to 10A Adjustable Current | Class 20 Tripping | Manual & Automatic Reset | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLRD1514
Alternatively Known As: TeSys LRD1514, Schneider Electric LRD1514, Thermal Overload Relay 7-10A, Motor Overload Protector
Technical Specifications
- Current adjustment range: 7 to 10A
- Tripping class: 20
- Reset: Manual and automatic
- Mounting: Direct on TeSys D contactors
- Phase failure sensitivity: Yes
- Test and stop functions: Yes
- Auxiliary contacts: 1 NO + 1 NC
- Operating temperature: -20°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 70mm x 70mm x 45mm
- Weight: 0.18 kg
Key Features
- Adjustable current range: 7 to 10A
- Class 20 tripping for reliable motor protection
- Manual and automatic reset options
- Phase failure sensitivity
- Direct mounting to TeSys D contactors
- Test and stop functions for easy maintenance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Motor protection in industrial automation
- Control panels for machinery
- HVAC systems
- Pumps, conveyors, and compressors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents motor damage, reducing equipment waste
- Enhances energy efficiency by protecting against overloads
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal TESYS D Thermal Overload Relay SCHLRD1514 is available for immediate purchase. Ideal for industrial motor protection and control panel applications.
