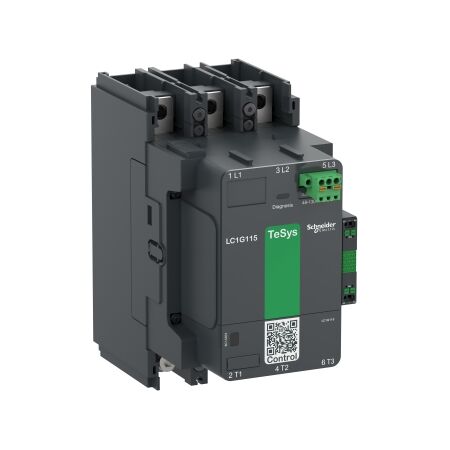

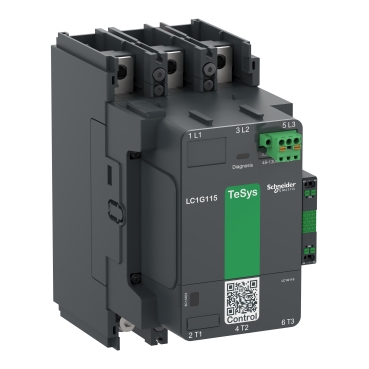

TeSys Giga 185A 3 Pole Contactor | 100-250V AC/DC | High Breaking Capacity | Robust Design | @Pack of 1 | by Clipsal
The TeSys Giga 185A 3 Pole Contactor is engineered for demanding industrial applications, featuring a wide control voltage range of 100-250V AC/DC and a high breaking capacity. Ideal for motor control centers and HVAC systems, this robust contactor ensures long electrical and mechanical life, making it a reliable choice for automation and power distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys Giga 185A 3 Pole Contactor | 100-250V AC/DC | High Breaking Capacity | Robust Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC1G185KUEN
Alternatively Known As: TeSys Giga Contactor, 185A Contactor, 3 Pole Industrial Contactor, SCHLC1G185KUEN, Schneider Electric Giga Contactor
Technical Specifications
- Rated operational current: 185A (AC-3, 400V)
- Number of poles: 3
- Control voltage: 100-250V AC/DC
- Rated insulation voltage: 1000V
- Conventional thermal current: 315A
- Electrical durability: 1.5 million cycles
- Mechanical durability: 10 million cycles
- Mounting: DIN rail or screw fixing
- Auxiliary contacts: 1 NO + 1 NC (standard)
- Standards: IEC 60947-4-1, IEC 60947-5-1
- Dimensions (H x L x W): 205mm x 160mm x 140mm
- Weight: 3.5 kg
Key Features
- High breaking capacity for demanding industrial applications
- 3 pole configuration for three-phase systems
- Wide control voltage range: 100-250V AC/DC
- Robust and reliable TeSys Giga design
- Easy installation and maintenance
- Long electrical and mechanical life
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Motor control centers
- Industrial automation panels
- Pumping stations
- HVAC systems
- Power distribution boards
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Energy-efficient coil reduces power consumption
- Long operational life minimizes replacement waste
- RoHS compliant, free from hazardous substances
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal TeSys Giga 185A 3 Pole Contactor (SCHLC1G185KUEN) is available for immediate purchase. Ideal for industrial motor control, automation, and power distribution applications.
