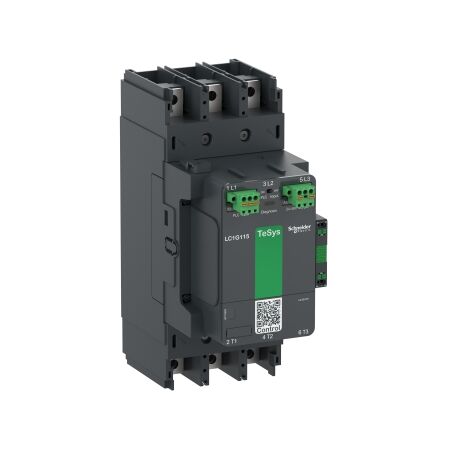

TeSys Giga 185A 3P Contactor | 24-48V AC/DC | High Durability | Compact Design | @Pack of 1 | by Clipsal
The TeSys Giga 185A 3P Contactor is designed for advanced motor and power control, featuring a wide control voltage range of 24-48V AC/DC and high electrical durability of up to 2 million cycles. Ideal for industrial applications such as motor control, HVAC systems, and power distribution, this compact and robust contactor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys Giga 185A 3P Contactor | 24-48V AC/DC | High Durability | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC1G185BEEA
Alternatively Known As: TeSys Giga Contactor, 185A Contactor, 3 Pole Industrial Contactor, SCHLC1G185BEEA, Schneider Electric Contactor
Technical Specifications
- Rated operational current: 185A (AC-3, 400V)
- Number of poles: 3
- Control voltage: 24-48V AC/DC
- Rated insulation voltage: 1000V
- Conventional thermal current: 315A
- Electrical durability: up to 2 million cycles
- Mechanical durability: up to 10 million cycles
- Mounting: DIN rail or screw fixing
- Auxiliary contacts: 1 NO + 1 NC (standard)
- Operating temperature: -40°C to +70°C
- Degree of protection: IP20
- Dimensions (H x L x W): 180mm x 160mm x 140mm
- Weight: 3.5 kg
Key Features
- 3 pole contactor for advanced motor and power control
- Rated operational current: 185A
- Wide control voltage range: 24-48V AC/DC
- High electrical and mechanical durability
- Compact and robust design for demanding environments
- Easy installation and maintenance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Pumping systems
- HVAC systems
- Lighting control
- Power distribution panels
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Energy-efficient operation reduces power losses in control circuits.
- Long service life minimizes replacement frequency and waste.
- RoHS compliant, reducing hazardous substances in manufacturing.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal TeSys Giga 185A 3 Pole Contactor (SCHLC1G185BEEA) is available for immediate purchase. Ideal for industrial motor control, power distribution, and automation applications.
