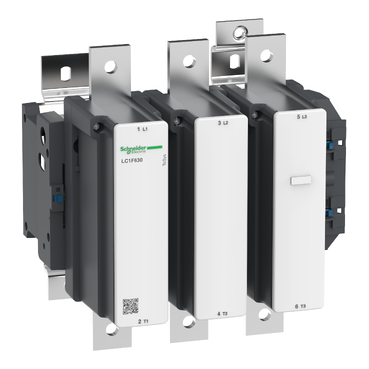

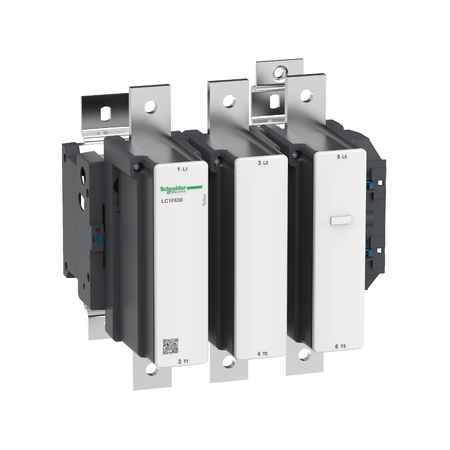

TeSys LC1F 3P AC3 Contactor | 630A Rated Current | 220V Coil Voltage | High Electrical Durability | @Each | by Clipsal
The TeSys LC1F 3P AC3 Contactor is designed for industrial motor control, featuring a robust 630A rated operational current and a 220V AC coil voltage. Ideal for heavy machinery and HVAC systems, this contactor ensures reliable switching and high electrical durability, making it perfect for direct-on-line starting of motors in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys LC1F 3P AC3 Contactor | 630A Rated Current | 220V Coil Voltage | High Electrical Durability | @Each | by Clipsal
Brand: Clipsal
SKU: SCHLC1F630M7
Alternatively Known As: Schneider LC1F630M7, TeSys F630 Contactor, 3 Pole 630A Contactor, Industrial Power Contactor
Technical Specifications
- Rated operational current: 630A (AC-3, 440V)
- Number of poles: 3 (3 NO)
- Coil voltage: 220V AC 50/60Hz
- Utilization category: AC-3
- Rated insulation voltage: 1000V
- Conforms to IEC 60947-4-1
- Mechanical durability: 5 million cycles
- Electrical durability: 1 million cycles (AC-3)
- Mounting: Panel mounting
- Auxiliary contacts: Optional
- Dimensions (H x L x W): 320mm x 210mm x 210mm
- Weight: 18 kg
Key Features
- TeSys F series 3-pole contactor
- AC-3 utilization category for motor control
- Rated operational current: 630A (AC-3, 440V)
- Coil voltage: 220V AC 50/60Hz
- 3 normally open (NO) main contacts
- High electrical durability and reliability
- Suitable for direct-on-line starting of motors
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Switching of electrical power circuits
- Pumping stations
- HVAC systems
- Heavy machinery and manufacturing plants
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control of large motors, reducing energy waste through reliable switching.
- Long operational life reduces replacement frequency and associated waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys LC1F630M7 3P AC3 Contactor is available for immediate purchase. Ideal for industrial motor control and heavy-duty switching applications.
