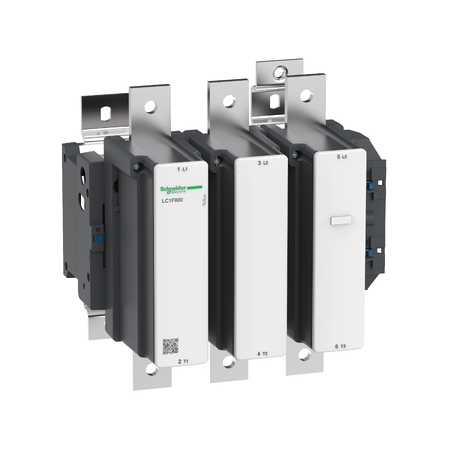

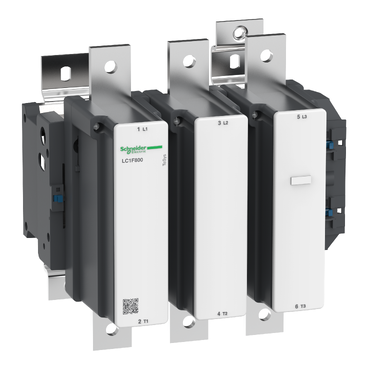

TeSys LC1F 3P AC3 Contactor | 800A Rated Current | 220-240V Coil Voltage | Heavy-Duty Design | @Pack of 1 | by Clipsal
The TeSys LC1F 3P AC3 Contactor is engineered for industrial motor control, featuring a robust design with a rated operational current of 800A at 440V. With a coil voltage of 220-240V AC, this contactor ensures reliable performance in demanding applications such as HVAC systems and power distribution panels. Its high electrical and mechanical endurance makes it ideal for heavy-duty use, ensuring efficient energy management and reduced downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys LC1F 3P AC3 Contactor | 800A Rated Current | 220-240V Coil Voltage | Heavy-Duty Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC1F800MW
Alternatively Known As: TeSys F Contactor, LC1F800MW, Schneider LC1F800, 3 Pole Power Contactor, 800A Contactor, Industrial Contactor
Technical Specifications
- Type: Power Contactor
- Series: TeSys F
- Poles: 3 (3 NO)
- Utilization Category: AC-3
- Rated Operational Current: 800A (at 440V)
- Coil Voltage: 220-240V AC / 220-230V DC
- Rated Insulation Voltage: 1000V
- Rated Impulse Withstand Voltage: 8kV
- Electrical Durability: 1 million cycles (AC-3)
- Mechanical Durability: 5 million cycles
- Mounting: Panel mounting
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 360mm x 220mm x 320mm
- Weight: 18 kg
Key Features
- 3-pole (3 NO) power contactor
- AC-3 utilization category for motor control
- Rated operational current up to 800A at 440V
- Coil voltage: 220-240V AC / 220-230V DC
- Robust TeSys F series design for heavy-duty applications
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and manufacturer instructions.
Applications
- Industrial motor control
- Switching of electrical circuits
- Pumping stations
- HVAC systems
- Power distribution panels
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment
Environmental Benefits
- Enables efficient energy management in industrial systems
- Supports reliable operation, reducing downtime and waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys LC1F800MW 3P AC3 Contactor is available for immediate purchase. Ideal for industrial motor control and power distribution applications.
