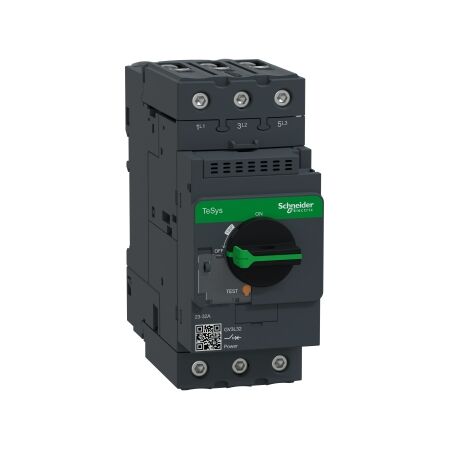

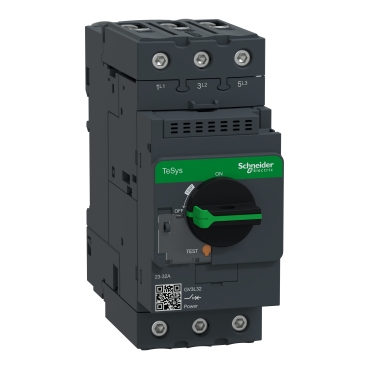

TeSys MOTOR CB MAGNETIC 32A | Magnetic Protection | 50kA Breaking Capacity | DIN Rail Mounting | @Pack of 1 | by Clipsal
The TeSys MOTOR CB MAGNETIC 32A is a magnetic motor circuit breaker designed for robust motor protection in industrial applications. With a rated current of 32A and a breaking capacity of up to 50kA at 400V AC, it ensures reliable short-circuit protection. Ideal for control panels in machinery and HVAC systems, this compact breaker features manual ON/OFF operation and IP20 front face protection, making it a perfect choice for licensed electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys MOTOR CB MAGNETIC 32A | Magnetic Protection | 50kA Breaking Capacity | DIN Rail Mounting | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHGV3L32
Alternatively Known As: Motor Circuit Breaker, Magnetic Motor Breaker, TeSys GV3L32, Motor Protection Circuit Breaker, 32A Motor Breaker
Technical Specifications
- Type: Magnetic Motor Circuit Breaker
- Rated Current: 32A
- Breaking Capacity: Up to 50kA at 400V AC
- Trip Unit: Magnetic only (short-circuit protection)
- Operating Voltage: 690V AC max
- Mounting: DIN rail or panel mounting
- Standards: IEC 60947-2, IEC 60947-4-1
- Manual ON/OFF operation
- IP20 front face protection
- Dimensions (H x L x W): 90mm x 80mm x 45mm
- Weight: 0.5 kg
Key Features
- Magnetic-only protection for short-circuit protection of motors
- 32A rated current for robust motor applications
- Compact design for easy integration into control panels
- Reliable and fast tripping to protect equipment
- Manual ON/OFF control with clear status indication
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Motor protection in industrial automation panels
- Control panels for machinery and HVAC systems
- Pumps, compressors, and conveyor systems
- General industrial and commercial motor control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents equipment damage, reducing waste and extending motor lifespan
- Efficient protection minimizes downtime and energy loss
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys Motor Circuit Breaker Magnetic 32A SCHGV3L32 is available for immediate purchase. Ideal for industrial and commercial motor protection applications.
