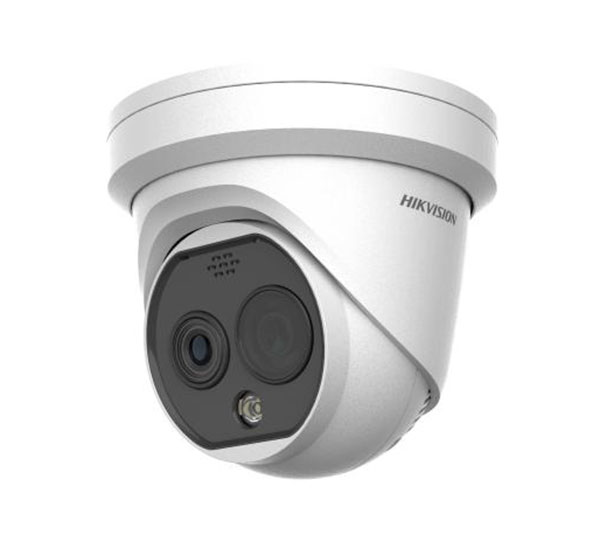

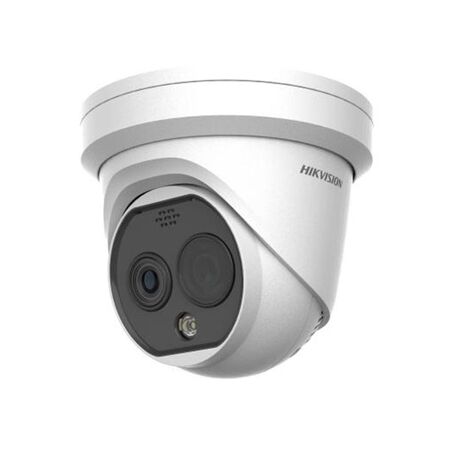

Thermal Bi-Spectrum Camera 2.1mm Hikvision
Hikvision thermal bi-spectrum camera features thermal and optical imaging and a 2.1mm lens. Ideal for thermal CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2TD1228-2/QA, HeatPro Bi-Spectrum Thermal Camera, Thermal CCTV Turret Camera
Technical Specifications
- Model: DS-2TD1228-2/QA
- Thermal Resolution: 256 × 192 pixels
- Thermal Sensor: Vanadium oxide uncooled focal plane array, 12 μm pixel pitch
- Thermal Lens: 2.1 mm, 90.0° × 65.4° field of view
- Thermal Sensitivity: NETD < 40 mK
- Optical Resolution: 2688 × 1520 pixels, approximately 4 MP
- Optical Lens: 2.2 mm, 117.8° × 70.4° field of view
- Temperature Measurement: -20°C to 150°C, accuracy ±8°C
- Video Analytics: Line crossing, intrusion, region entrance and region exiting
- Image Functions: Bi-spectrum image fusion, picture-in-picture, target colouration and 120 dB WDR
- Illumination: IR up to 15 m and white light up to 30 m
- Network Interface: 10/100 Base-T Ethernet
- Power Supply: 12 VDC, maximum 6 W, or PoE 802.3af, maximum 6.5 W
- Ingress Protection: IP67
- Operating Temperature: -40°C to 65°C
- Storage: MicroSD card support up to 256 GB
- Dimensions (H x L x W): 123.1mm x 138.3mm x 138.3mm
- Weight: 0.94 kg
Key Features
- Combines thermal and visible-light imaging in one network turret camera
- Wide-angle 2.1 mm thermal lens for broad-area monitoring
- Detects temperature exceptions for early fire and heat-anomaly alerts
- Supports vehicle and human classification
- Bi-spectrum fusion and picture-in-picture viewing modes
- Integrated visual and audible alarm functions
- PoE support simplifies network camera installation
- IP67-rated housing for outdoor and demanding environments
- Supports smoking detection, fire detection and sun-reflection filtering
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or CCTV technician. Configure the camera, network, PoE supply, alarm outputs and recording system in accordance with the manufacturer’s instructions and applicable electrical and video-surveillance requirements.
Applications
- Thermal CCTV and perimeter protection
- Warehouses, construction sites and manufacturing facilities
- Parking areas, industrial sites and critical infrastructure
- Early fire-warning and heat-anomaly monitoring
- Security monitoring in smoke, darkness or reduced-visibility conditions
Standards & Compliance
- Relevant CCTV/VSS system requirements: AS/NZS 62676.1.1:2020
- Relevant camera specification and image-quality measurement reference: AS/NZS 62676.5:2020
Environmental Benefits
- Combines thermal and optical surveillance in one device, potentially reducing the need for separate cameras and associated installation materials
- Thermal detection can support earlier identification of abnormal heat and fire conditions, helping reduce equipment and material loss
- IP67-rated construction and a wide operating-temperature range support extended service life and reduced replacement waste
Warranty Information
Hikvision Oceania lists Security Thermal Cameras within its five-year warranty programme for qualifying products manufactured after 1 March 2022. Confirm model, region and purchase-channel eligibility before sale or installation.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
