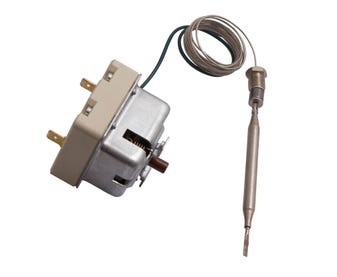

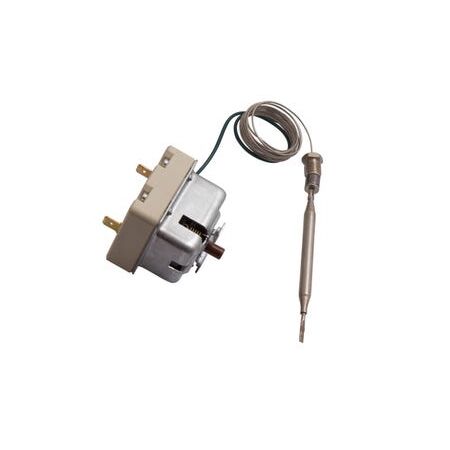

Thermal Cut Out 235°C | Manual Reset | SPST Design | Fail-Safe Protection by EGOFIX

BRAND: CABAC
SKU: EF55.32544.140
$187.00 List price: $226.40
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
Thermal cut out rated at 235°C, designed for fail-safe operation—ideal for electrical safety applications. Built for reliable protection against overheating, ensuring peace of mind in various systems.

Product Name/Title: Thermal Cut Out 235°C | Fail-Safe Design | Reliable Protection by EGOFIX

Brand: Cabac

SKU: EF55.32544.140

Alternatively Known As: Thermal Cut Out, Manual Reset Thermostat, Temperature Safety Switch, Cooking Appliance Thermostat

Technical Specifications
  • Cut-out Temperature: 235°C
  • Switch Type: SPST break on temperature rise
  • Capillary Length: 1490mm
  • Sensor Size: 87 x 6mm
  • Contact Material: Gold
  • Current Rating: 0.5A at 12V
  • Operation: Millivolt compatible
  • Reset Type: Manual reset after temperature fall
  • Dimensions (H x L x W): 87mm x 1490mm x 6mm
  • Weight: 0.1 kg
Key Features
  • Manual reset thermostat with 235°C cut-out temperature
  • Single pole single throw (SPST) break on temperature rise
  • 1490mm capillary with gland nuts for secure installation
  • Sensor dimensions 87 x 6mm
  • Gold contacts suitable for millivolt operation
  • Failsafe design for enhanced safety
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure correct and safe operation.
Applications
  • Gas deep fryers
  • Cooking appliances requiring temperature safety cut-out
Standards & Compliance
  • Complies with AS/NZS 60335 for safety of household and similar electrical appliances
Environmental Benefits
  • Helps prevent overheating and potential appliance damage, reducing waste and extending appliance life
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cabac EGOFIX Thermal Cut Out 235°C is available now for immediate purchase. Ideal for use in gas deep fryers and other cooking appliances requiring temperature safety cut-out.
