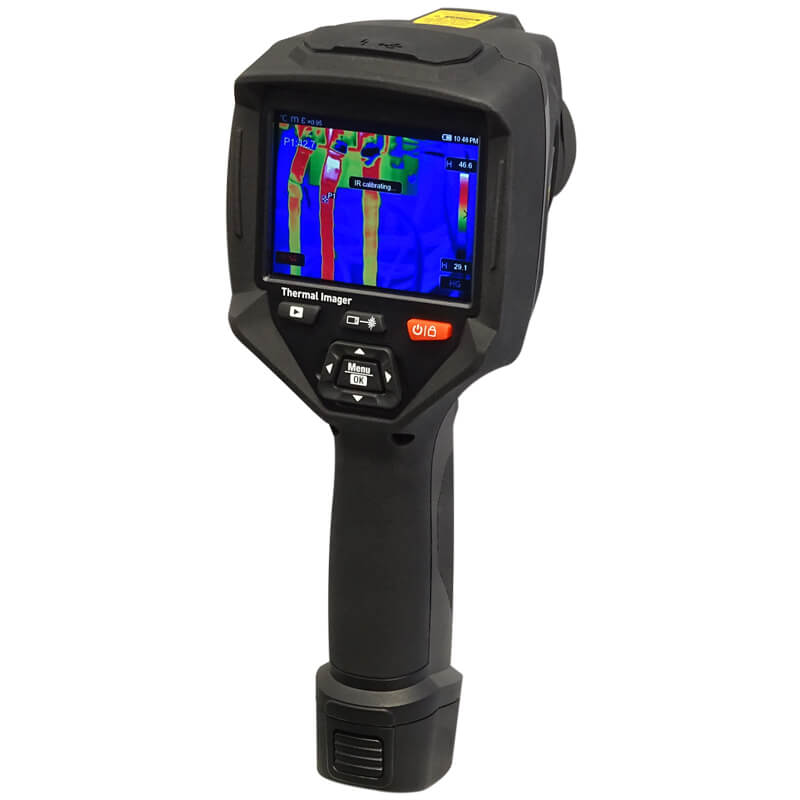

Thermal Imager 160 x 120 | 50Hz Frame Rate | Built-in Laser Distance Meter | 32X Digital Zoom by Majortech
Experience high-performance thermal imaging with the 160 x 120 thermal imager, featuring a 50Hz frame rate and built-in laser distance meter. Ideal for HVAC, automotive diagnostics, and food service monitoring, this device offers manual focus and a large 3.5-inch touch screen for easy operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Imager 160 x 120 | 50Hz Frame Rate | Built-in Laser Distance Meter | 32X Digital Zoom by Majortech
Brand: Majortech
SKU: MTi50
Alternatively Known As: Thermal Imaging Camera, Infrared Camera, Thermal Imager, IR Camera, Thermal Imaging Device
Technical Specifications
- Field of View: 17° x 12.7° at 0.5m
- Spatial Resolution (IFOV): 1.89 mrad
- Thermal Sensitivity/NETD: <0.08° at 30°C (80mK)
- Image Range: 50Hz
- Focus Mode: Manual
- Zoom: 1-32x continuous digital zoom
- Focal Length: 22mm
- Focal Plane Array (FPA) / Spectral range: Uncooled microbolometer / 8-14μm
- IR Resolution: 160 x 120
- Display: 3.5 inch LCD touch screen, 640 x 480 pixels
- Image Modes: IR Image, Visual image, Picture in Picture, Auto Fusion, Laser Distance
- Colour Palettes: Iron, Rainbow, Grey, Grey inverted, Brown, Blue red, Hot cold, Feather, Above/Below Alarm, Zone Alarm
- Temperature Range: Low -20°C to 150°C, High 0°C to 650°C
- Temperature Accuracy: ±2°C or ±2% of reading (Environment temp 10°C – 35°C)
- Spot Measurements: Centre Spot, 3 Manual Spots
- Line Measurements: 2 lines (horizontal or vertical)
- Area Measurements: 3 Areas with max/min/average
- Automatic Hot/Cold Detection: Auto hot or cold markers
- Emissivity Correction: Variable 0.01 to 1.0, Standard Emissivity Table
- Measurement Corrections: Emissivity, Reflective temp, Ambient temp, Distance compensation, Relative humidity, Infrared compensation
- Laser Distance Meter Range: 0.05 to 30m
- Video Storage: 8GB Micro SD card, 3.4GB internal EMMC
- Video Format: MPEG-4, 640 x 480@30fps
- Image Format: JPEG or .HIR files including measurement data
- Built-in Camera: 5 Megapixels
- Interfaces: USB-mini, HDMI
- Power Source: Lithium-ion battery, 4 hours operating time
- Charging System: In-camera AC adapter
- Enclosure: Over moulded casing
- Weight: 500g
- Dimensions: 224 x 77 x 96mm
- Dimensions (H x L x W): 77mm x 96mm x 224mm
- Weight: 0.5 kg
Key Features
- 160 x 120 pixel resolution at 50Hz
- Built-in Laser Distance meter
- Wi-Fi for image transfer and live video
- Manual focus with large bright 3.5 inch touch screen
- Up to 3 manual spot or area measurements
- Hot/Cold spot marker automatically finds hottest and coldest spots
- Adjustable zone alarm
- Temperature range from -20°C to 650°C
- 32X continuous digital zoom
- HDMI video output
- On-screen adjustable level and span
- Over moulded casing for durability
- Lithium-ion battery with 4 hours operating time
- In-camera charging system
Professional Installation Requirements
- No professional installation required. User manual provided for operation and maintenance. Training recommended for optimal use.
Applications
- Plant / General Maintenance
- HVAC/R
- Transportation / Automotive
- Cooling and Reheating
- Serving areas and Cold storage
- Food service equipment
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables early detection of equipment faults reducing energy waste and preventing environmental hazards
- Supports predictive maintenance to extend equipment life and reduce resource consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Majortech warranty terms for details.
Available Now
The Majortech MTi50 Thermal Imager is available now for immediate purchase. Ideal for industrial maintenance, HVAC, automotive diagnostics, and food service equipment monitoring.
