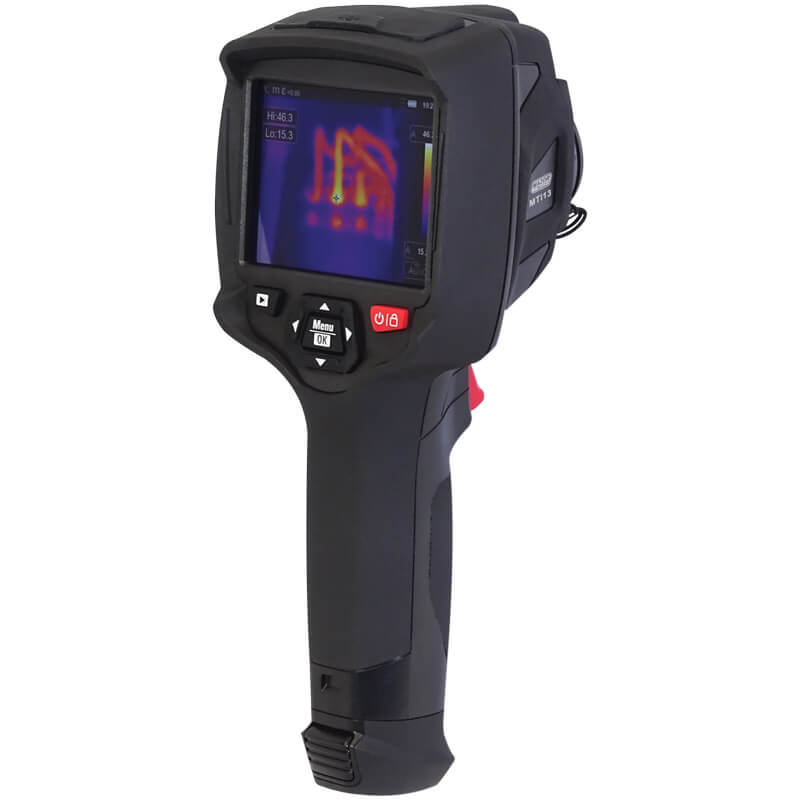

Thermal Imager 256 x 192px | Wi-Fi Enabled | 25Hz Refresh Rate | 2.8 Inch LCD by Majortech
Experience advanced thermal imaging with the 256 x 192px thermal imager, featuring Wi-Fi connectivity for live data transfer and a 25Hz refresh rate. Ideal for maintenance electricians and industrial inspections, this device offers a 2.8 inch LCD touchscreen and automatic hot/cold detection for efficient diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Imager 256 x 192px | Wi-Fi Enabled | 25Hz Refresh Rate | 2.8 Inch LCD by Majortech
Brand: Majortech
SKU: MTi13
Alternatively Known As: Thermal Camera, Infrared Imager, IR Thermal Imager, Heat Detection Camera, Thermal Imaging Camera
Technical Specifications
- Field of View: 62° x 48°
- Spatial Resolution (IFOV): 4.6 mrad
- Thermal Sensitivity/NETD: <0.04°C at +30°C (40mK)
- Image Range: 25Hz refresh rate
- Focus Mode: Auto Focus
- Zoom: 1-32x continuous digital zoom
- Focal Length: 7.5mm
- Focal Plane Array (FPA) / Spectral Range: Uncooled microbolometer / 8-14 µm
- Display: 2.8 inch LCD, 240 x 320 pixels
- Image Modes: IR Image, Visual Image, Auto Fusion
- Picture in Picture: IR area on visual image or visual image on IR
- Colour Palettes: Iron, Rainbow, Grey, Grey Inverted, Brown, Blue-Red, Hot-Cold, Feather
- Temperature Range: -20°C to 400°C (-4°F to 752°F)
- Temperature Accuracy: ±2°C or ±2% of reading
- Spot Measurement: Centre spot
- Line Measurement: 2 lines (horizontal or vertical)
- Area Measurement: 3 areas with max/min/average
- Automatic Hot/Cold Detection: Auto hot or cold markers
- Emissivity Correction: Variable 0.01 to 1.0
- Measurement Corrections: Emissivity, Reflective temp, Ambient temp, Distance compensation, Relative humidity, Infrared compensation
- Video Storage: 4GB Micro SD card
- Video Format: MPEG-4 encode, 640x480 at 30fps
- Image Storage: JPEG or HIR files with measurement data
- Built-in Camera: 2 Megapixels
- Interfaces: USB-Type C for data and live video transfer
- Power Source: Lithium-ion battery with 4 hours operating time
- Charging System: In camera (AC adapter)
- Enclosure: Over moulded casing
- Safety Specs: EN61010-1
- Dimensions (H x L x W): 77mm x 96mm x 224mm
- Weight: 0.5 kg
Key Features
- 256 x 192 pixel IR resolution with 50Hz refresh rate
- Focus free with large 2.8 inch LCD touchscreen
- Wi-Fi enabled for live thermal data transfer to smart devices
- Adjustable emissivity from 0.01 to 1.0 with standard emissivity table
- Temperature range from -20°C to 400°C
- 3 movable area temperature spots, center spot, and line measurements
- Automatic hot and cold spot markers
- Digital zoom from 1x to 32x continuous
- Multiple color palettes including Iron, Rainbow, Grey, and more
- Video recording with MPEG-4 format and image storage in JPEG or HIR formats
- Lightweight at 500g with overmoulded casing for durability
- Rechargeable lithium-ion battery with 4 hours operating time
Professional Installation Requirements
- No professional installation required; device is handheld and ready to use out of the box. Training recommended for optimal use.
Applications
- Maintenance electricians for detecting hot spots
- Electrical distribution board inspections
- Industrial thermal analysis and fault detection
- Real-time thermal imaging for field diagnostics
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables early detection of electrical faults reducing energy waste and fire risk
- Non-contact temperature measurement reduces the need for invasive inspections
- Rechargeable battery reduces disposable battery waste
Warranty Information
Standard manufacturer warranty applies; please refer to Majortech for specific warranty terms.
Available Now
The Majortech MTi13 256 x 192 Thermal Imager is available now for immediate purchase. Ideal for electrical maintenance and industrial thermal inspections.
