Thermal Imager for Android Devices | 10,800 Pixel Resolution | -20°C to 400°C Temperature Range | USB-C & Micro-USB Compatible | by Wattmaster
The Thermal Imager for Android Devices offers a stunning 10,800 pixel resolution and a temperature range of -20°C to 400°C, making it perfect for detecting hot spots in electrical panels and identifying energy loss in buildings. With adjustable emissivity and three color palettes, this device is designed for professionals who need reliable thermal imaging on the go.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

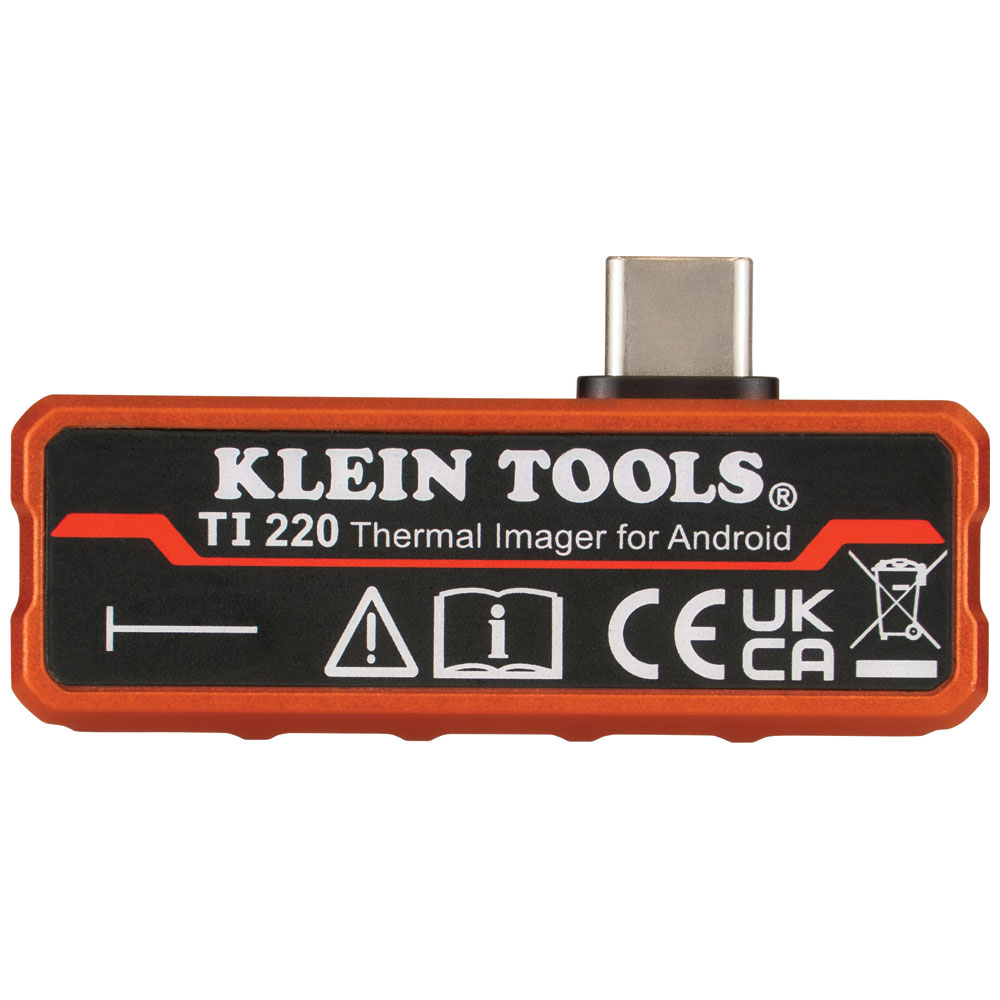

Product Name/Title: Thermal Imager for Android Devices | 10,800 Pixel Resolution | -20°C to 400°C Temperature Range | USB-C & Micro-USB Compatible | by Wattmaster
Brand: Wattmaster
SKU: A-TI220
Alternatively Known As: Android Thermal Camera, Thermal Imaging Camera for Android, Thermal Imager USB, Klein Tools TI220 Thermal Camera

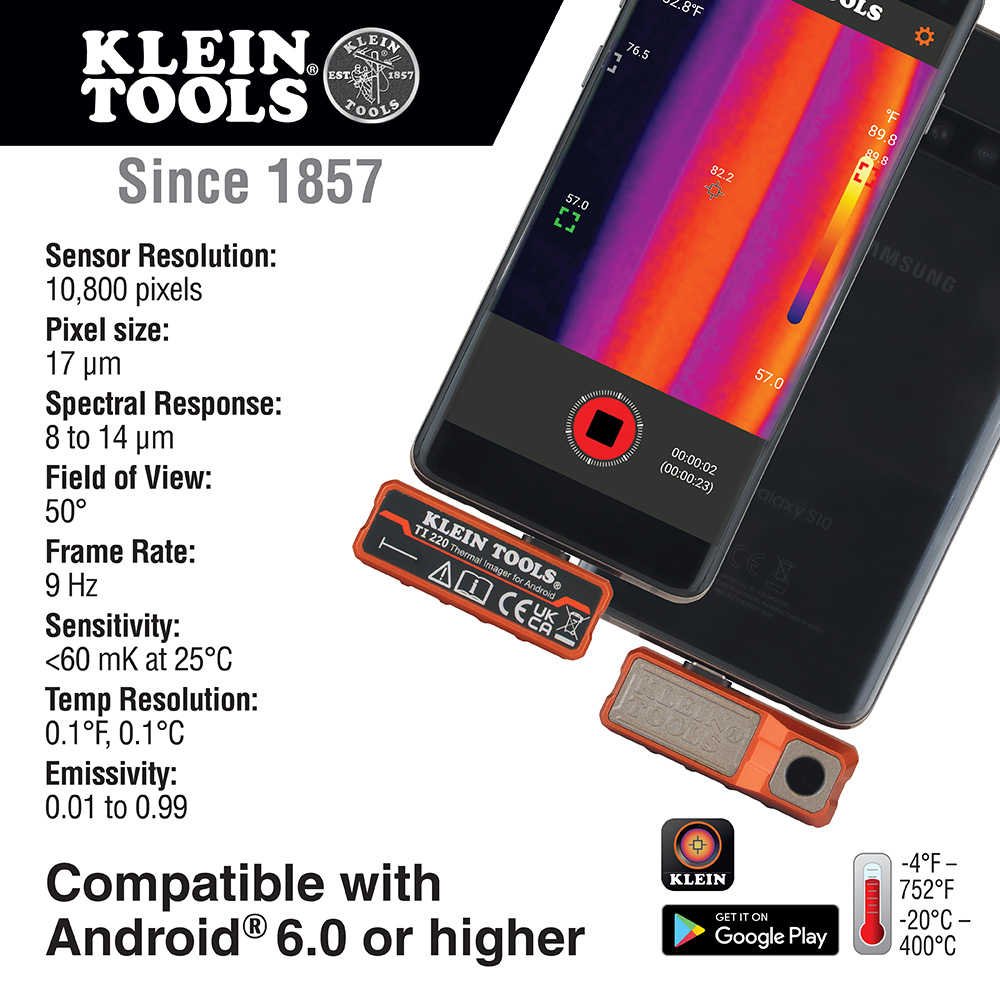

Technical Specifications
- Sensor Type: VOx Microbolometer
- Sensor Resolution: 10,800 pixels
- Thermal Sensitivity: <60 mK
- Spectral Range: 8 to 14 μm
- Temperature Range: -20°C to 400°C (-4°F to 752°F)
- Accuracy: ±2°C or 2%, whichever is greater (not calibrated below 10°C)
- Field of View: 50° ±3°
- Colour Palettes: Ironbow, Rainbow, Greyscale
- Maximum Frame Rate: <9 Hz
- Emissivity: Adjustable 0.01 to 0.99

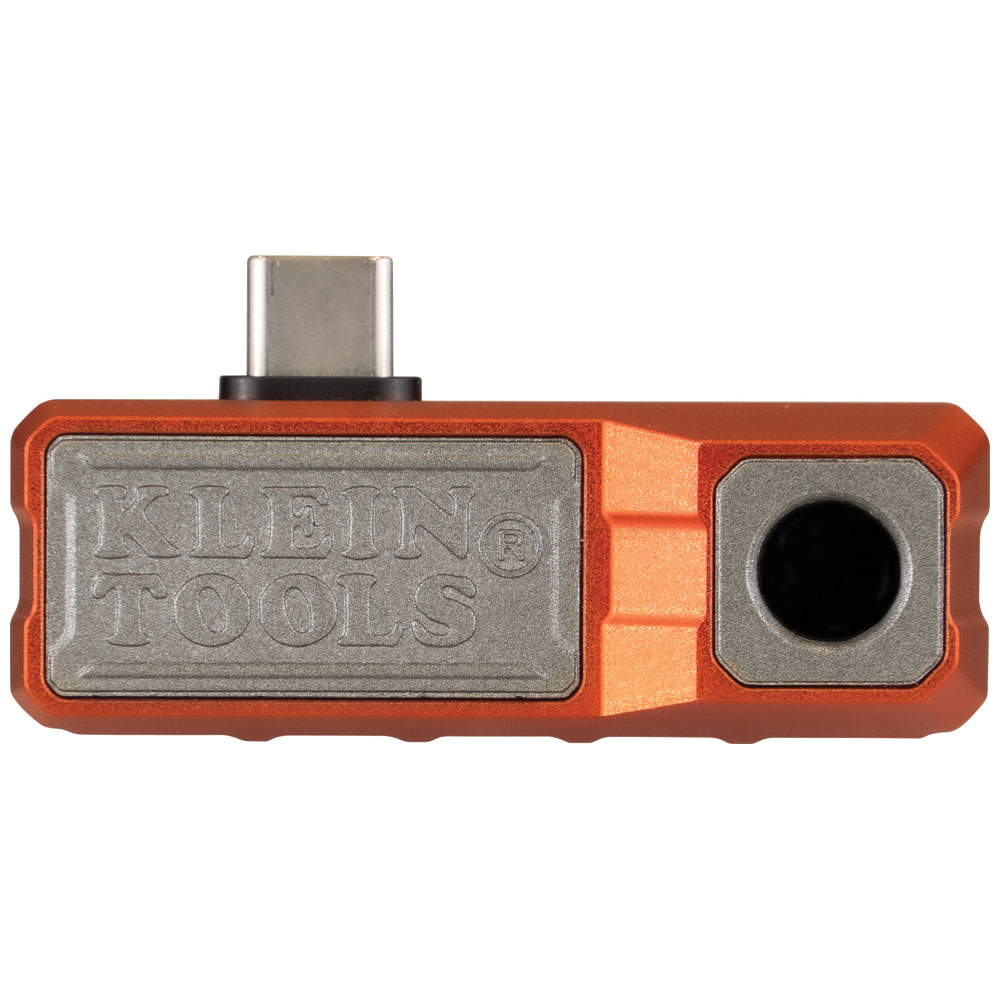

- Material: Aluminium housing with electronic components
- Display: External Android device
- Memory: Stored on external device

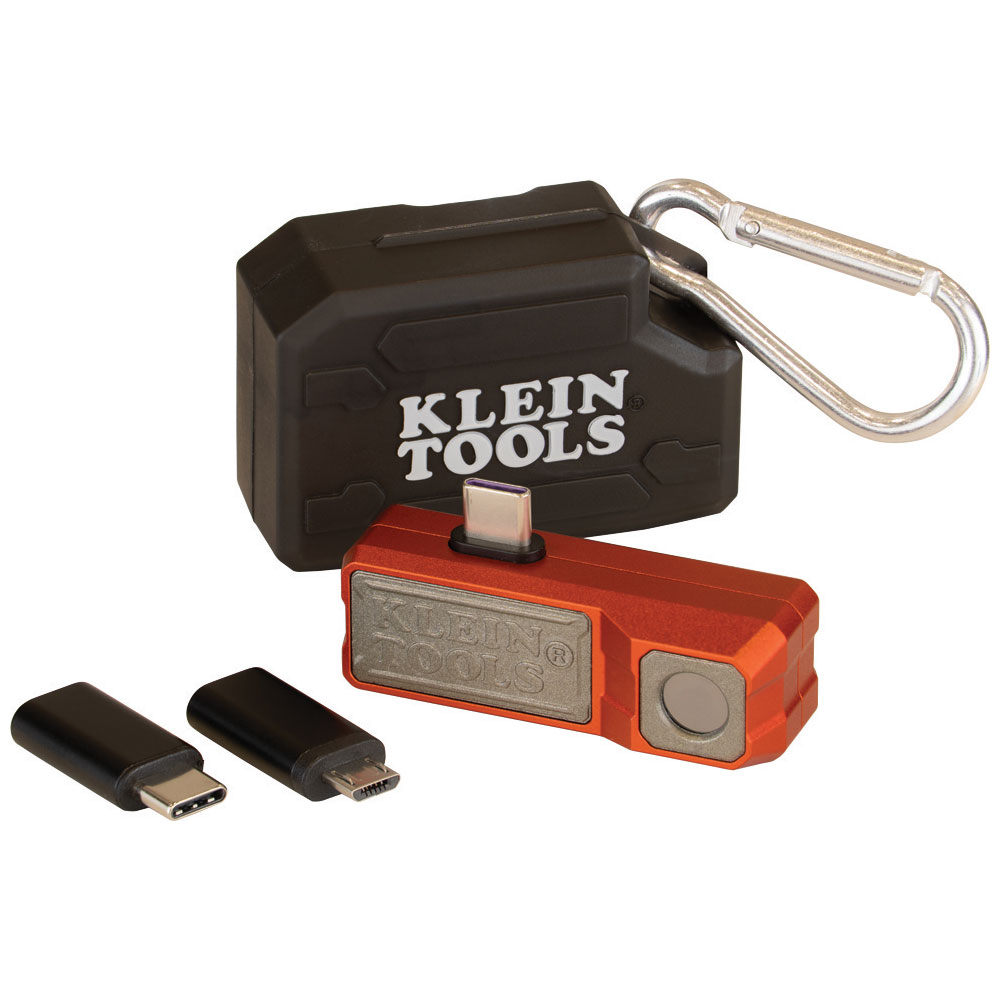

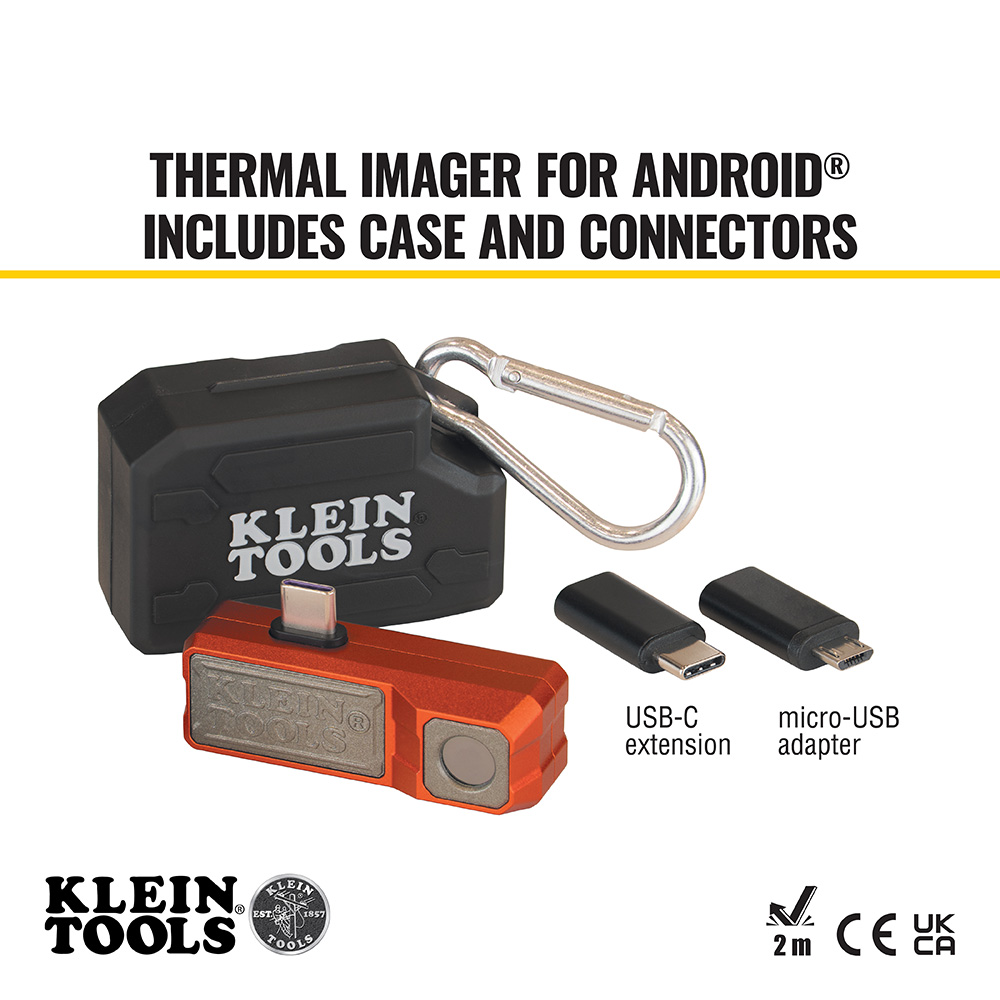

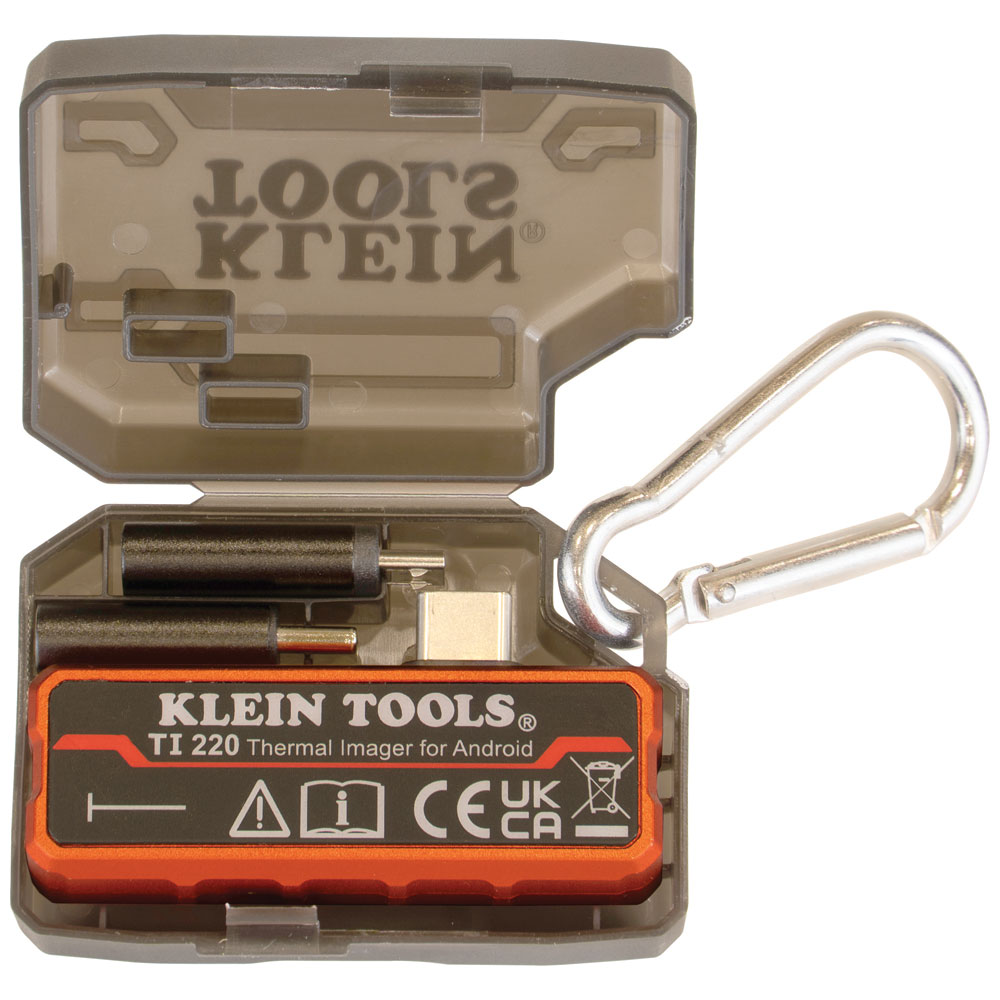

- Includes: Thermal Imager, USB-C connector, Micro-USB adapter, hard storage case with carabiner, instructions
- Dimensions (H x L x W): 27mm x 54mm x 19mm
- Weight: 0.1 kg
Key Features
- 10,800 pixel resolution for excellent thermal imaging
- Compatible with most Android devices (version 6.0 or higher) with USB-C or Micro-USB connectors

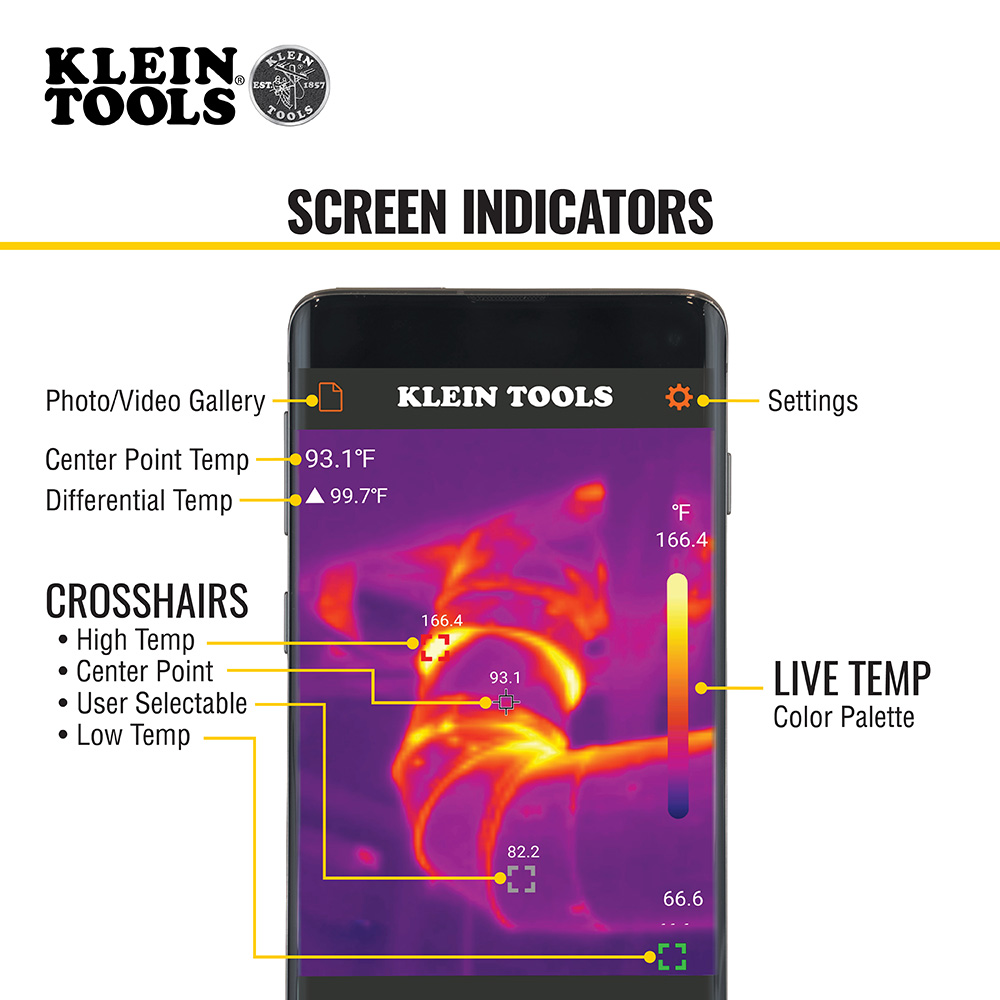

- Capture, store, and share thermal images and videos including time-lapse
- Temperature range from -20°C to 400°C (-4°F to 752°F)
- Three colour palettes: ironbow, rainbow, and greyscale
- High/low temperature alarms for system monitoring
- Durable with 2 m drop test protection
- Adjustable emissivity from 0.01 to 0.99
Professional Installation Requirements
- No professional installation required; follow all safety instructions and do not use on or near live electrical circuits as the device is not insulated.

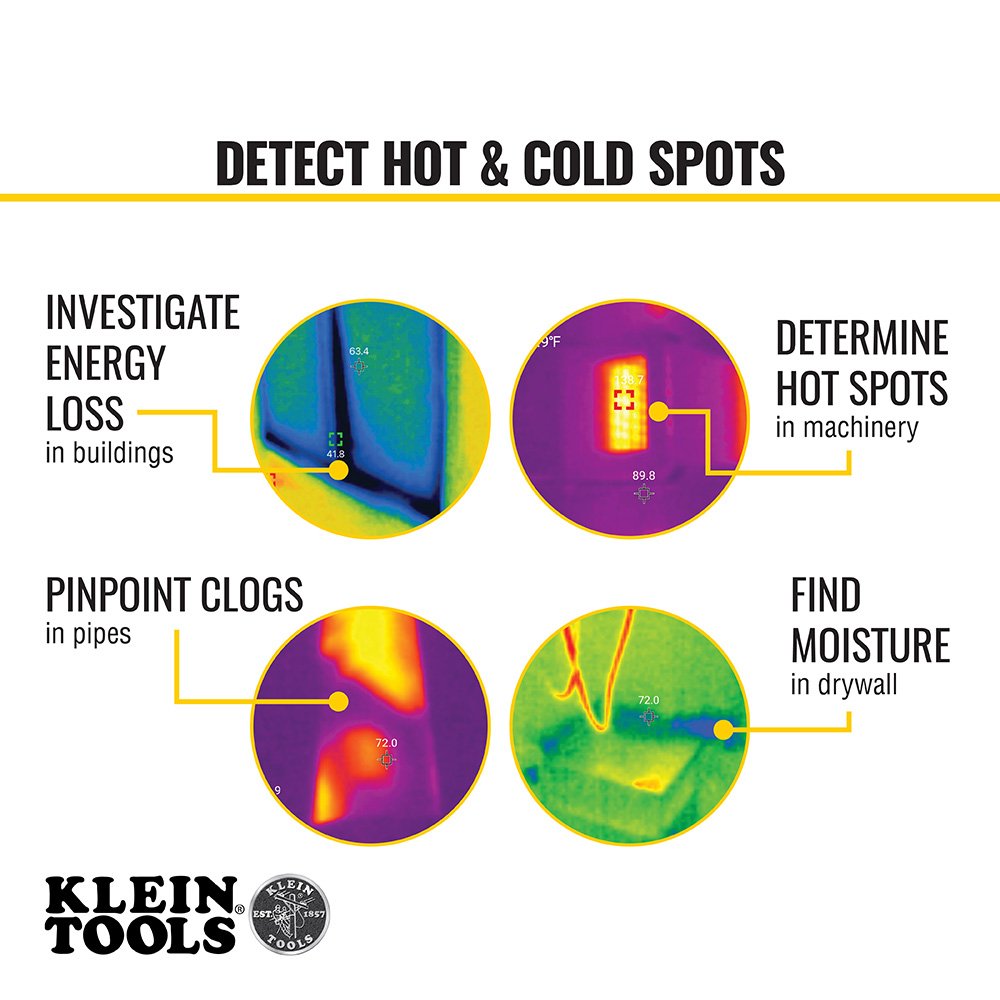

Applications

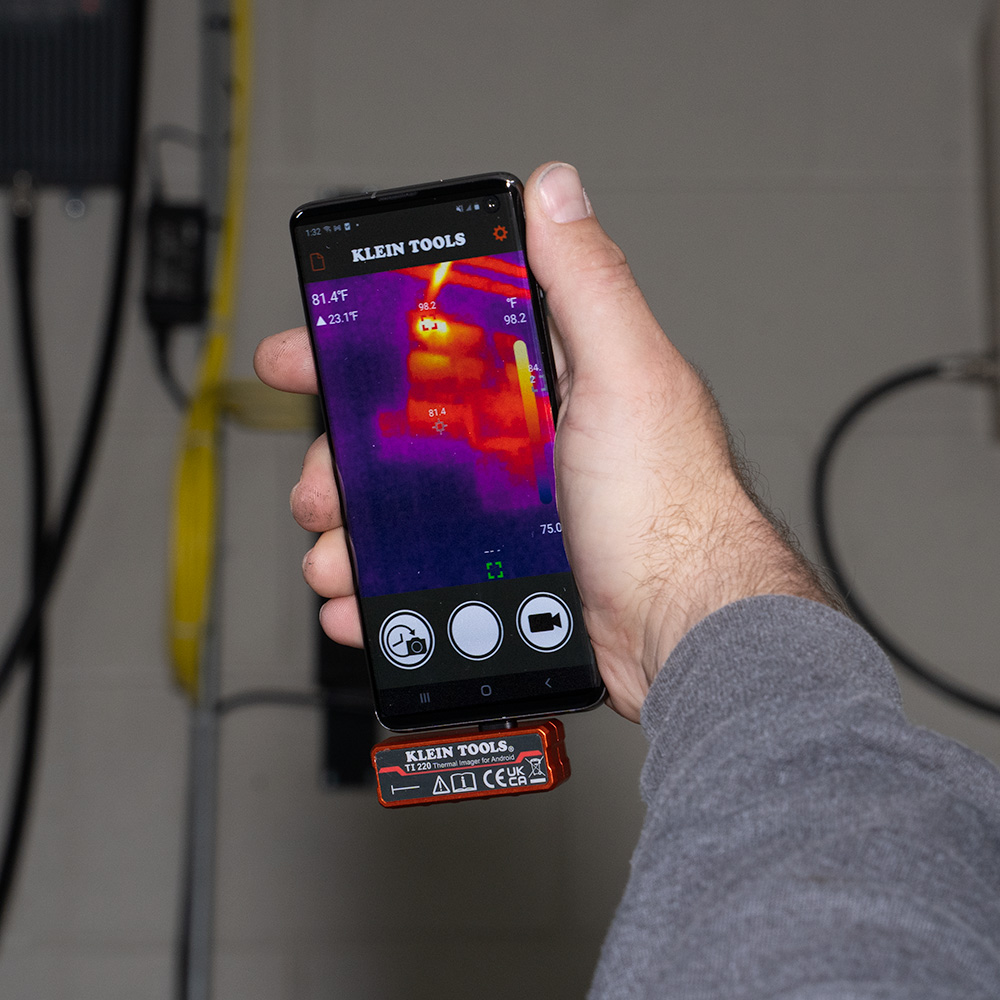

- Detect hot spots in electrical panels, wiring, and equipment
- Identify sources of energy loss in homes and buildings
- Detect moisture behind walls and flooring
- Locate clogs in pipes
- General troubleshooting of hot and cold spots
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps identify energy loss areas to improve energy efficiency
- Supports early detection of moisture to prevent mold and structural damage
- Non-invasive diagnostics reduce waste and unnecessary repairs
Warranty Information
Warranty details available from the manufacturer; typically includes limited warranty against defects.
Available Now
The Wattmaster TI220 Thermal Imager for Android Devices is available for immediate purchase. Ideal for electrical, building inspection, and maintenance professionals requiring portable thermal imaging solutions.
