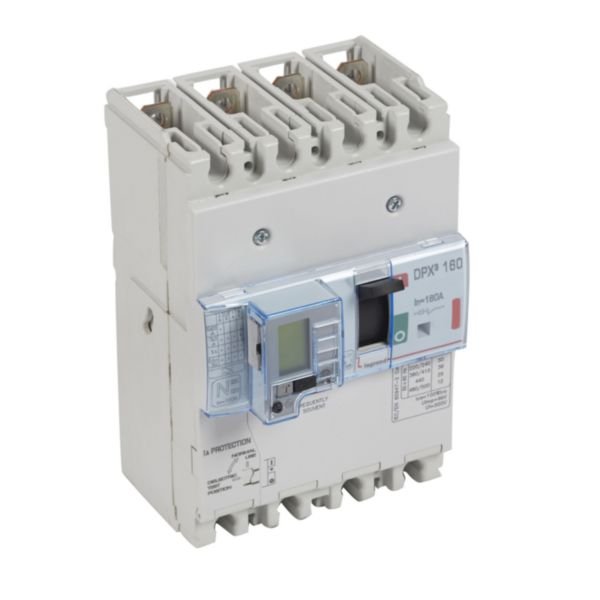

Thermal Magnetic MCCB 160A | 50kA Short-Circuit Protection | Earth Leakage Module | @Each of 1 | by Legrand
The Thermal Magnetic MCCB 160A is designed for robust electrical protection, featuring a 50kA short-circuit breaking capacity and integrated earth leakage protection. Ideal for industrial and commercial applications, this device ensures safety and reliability in electrical distribution systems, making it a must-have for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Magnetic MCCB 160A | 50kA Short-Circuit Protection | Earth Leakage Module | @Each of 1 | by Legrand
Brand: Legrand
SKU: 420749
Alternatively Known As: Thermal Magnetic MCCB with Earth Leakage, DPX3160+RCD, 3 Pole MCCB with RCD, 160A MCCB with Earth Fault Protection
Technical Specifications
- Rated permanent current (Iu): 160 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 50 kA
- Overload release current setting: 128-160 A
- Adjustment range short-term delayed short-circuit release: 1600 A
- Adjustment range undelayed short-circuit release: 1600 A
- Device construction: Built-in fixed built-in technique
- Integrated earth fault protection: Yes
- Type of electrical connection: Screw connection
- Suitable for DIN rail mounting: Yes
- Number of auxiliary contacts (normally closed): 1
- Number of auxiliary contacts (change-over): 1
- Switched-off indicator: Yes
- Integrated under voltage release: Yes
- Number of poles: 3
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Motor drive optional: Yes
- Degree of protection (IP): IP30
- Contains Batteries: Yes (non-rechargeable lithium battery)
- Dimensions (H x L x W): 140mm x 75mm x 90mm
- Weight: 3.5 kg
Key Features
- Rated permanent current: 160 A
- Rated voltage: 220-690 V
- Short-circuit breaking capacity: 50 kA at 400 V, 50 Hz
- Overload release current setting: 128-160 A
- Integrated earth fault protection
- Screw connection for main circuit
- Suitable for DIN rail (top hat rail) mounting
- Auxiliary contacts: 1 normally closed, 1 change-over
- Switched-off indicator included
- Integrated under voltage release
- Degree of protection: IP30
- Includes non-rechargeable lithium battery for device operation
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical distribution system.
Applications
- Industrial electrical distribution panels
- Commercial and residential electrical protection systems
- Motor control centers
- Power distribution units requiring earth leakage protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Integrated earth leakage protection enhances electrical safety and reduces risk of electrical fires.
- Durable design reduces need for frequent replacements, minimizing electronic waste.
Warranty Information
Legrand provides a standard 2-year warranty covering manufacturing defects and performance issues under normal use.
Available Now
The Legrand DPX³ 160 3 Pole + N/2 160A Thermal Magnetic MCCB with Earth Leakage Module 50kA is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
